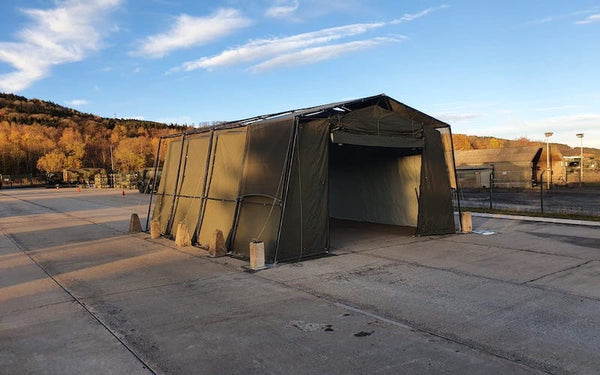

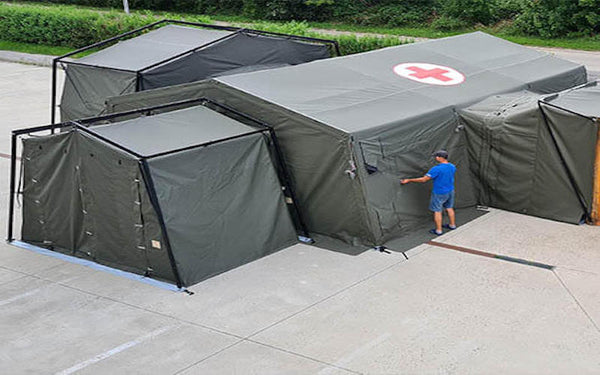

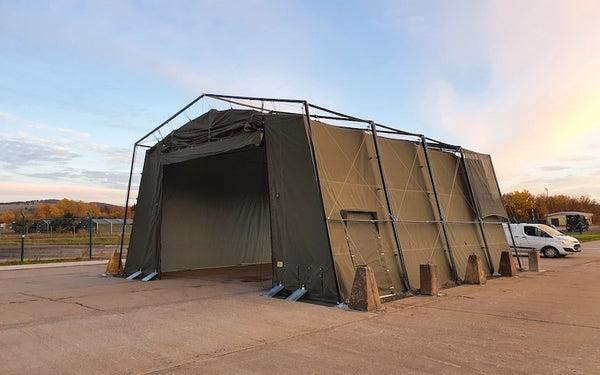

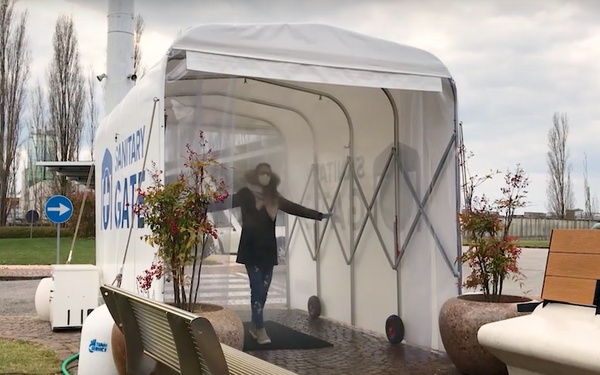

NIXUS FOLD

Decontamination and Sanitation Tunnel

Price on Application

The serious global situation has led us to create a solution that can be of public value: a disinfection tunnel with an integrated, hydraulic system for the atomisation of any biocides and virucides. The tunnel contains the atomised liquid spray inside to effectively saturate the environment.

In this way it is possible to disinfect all surfaces even those which are not directly exposed to the nozzles.

Designed and manufactured in Europe, our Sanitation tunnel solutions provide a perfect versatile solution

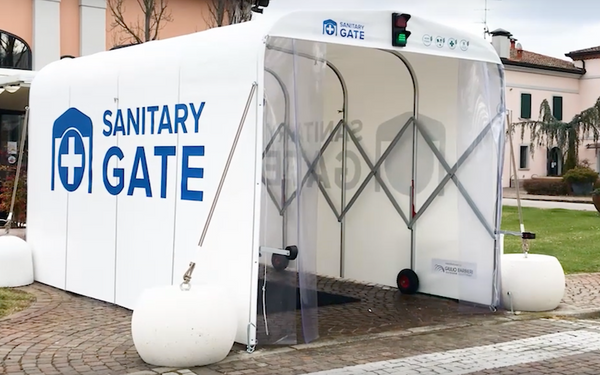

 SANITARY GATE BROCHURE

 RETRACTABLE TUNNEL SPECIFICATIONS

What is it used for

Sanitary and decontamination Tunnels and Gates represent a safe protection and entry for everyone, in particular for those who work in close contact with groups and are therefore at higher risk.

It can be installed at the entrance of public offices, pharmacies, supermarkets, airports, hospitals, ports, stations. It is suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.

How it Works

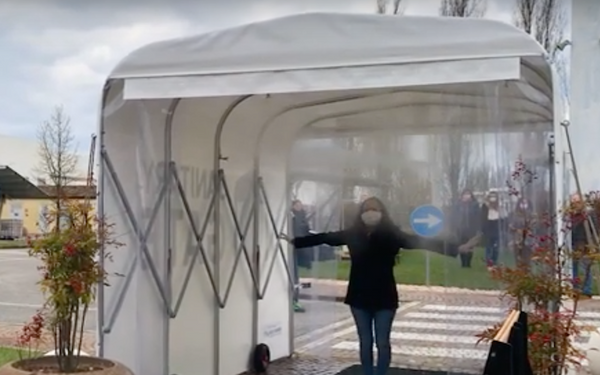

The tunnel creates an obligatory passage and is equipped with, internal arc-shaped atomising nozzles that saturate the environment but preventing dispersions.

The nebulisation system is connected to a control system capable of automatically mixing the sanitising product at percentages indicated by the manufacturer.

Access to the tunnel is regulated by a traffic light with motion detection. By placing a barrier floor inside the Sanitary Gate, it is possible to sanitise the surface in contact with the ground

Technical Features

• Fast assembly in a matter of hours to a few days.
• Foundation-free.
• Maintenance-free for reduced total lifetime investment.
• Space saving: a standard 4 mts tunnel can be retracted up to a minimum of 35 cms when not in use (this is a Rb1 tunnel on nylon wheels)
• Suitable for permanent or temporary installation
• Easy installation, modification or relocation as the frame is modular and expandable.
• User and operator friendly
• Coloured roofs and frames, clear windows and covers, curtains (sliding or with central opening) branding and signwriting are available.

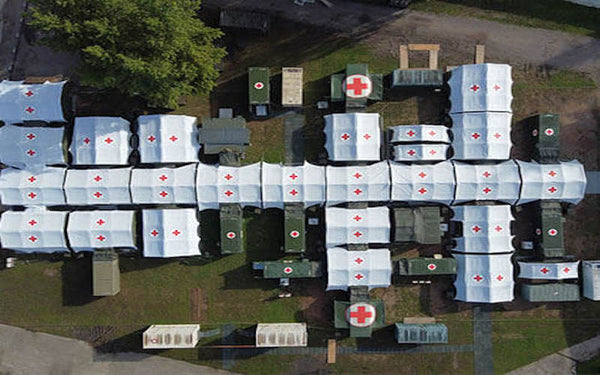

• Tunnels can be linked together or linked to existing structures or buildings (flashing and plates are available to facilitate a smooth connection)
• Completely tailored, made to measure and fully customizable to site's requirements
• Innovative and unique design
• Long-lasting and cost effective
• Widths: from 2.5 mt up to 12 mts
• Eave height: from 1.8 mts up to 5 mts
• Reduced height tunnels - roof only systems - wall mounted models either single and double pitch, fixed, curved, sloped modules, bespoke sizes smaller or larger are available upon request
• Wheel Options: pneumatic tyres, nylon wheels (with and without lift proof tracks) multi-directional pneumatic tyres, multi-directional nylon wheels, heavy duty wheels and much more.
• Eyelets, stainless steel tracks, safety straps, handles to pull the tunnel back as an option
• covers are made from single panels, each a metre wide, which are fitted into the profile’s groove with a kader strip on both sides

View full product details »

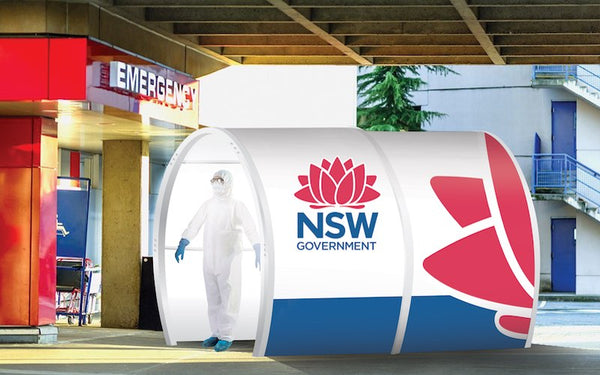

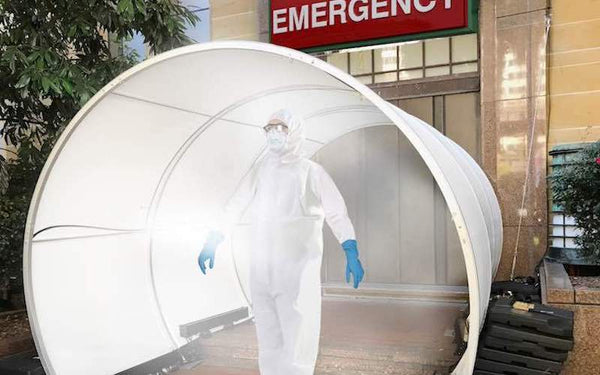

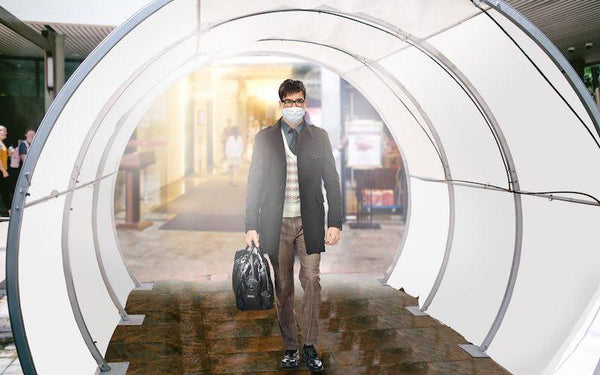

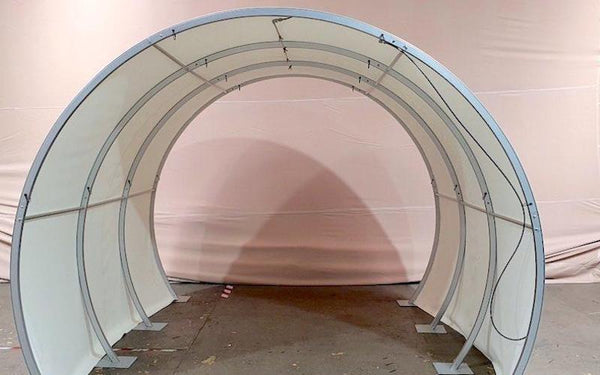

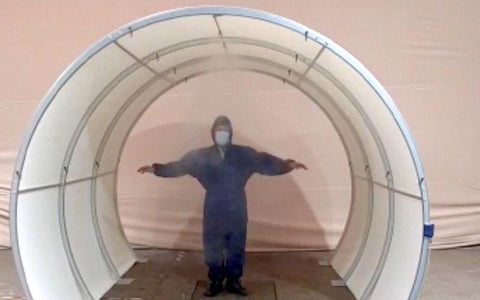

Decontamination and Sanitation Tunnel LITE

Price on Application

As countries gear up to fight the spread of COVID-19, there is a requirement for products to help fight the spread of contagions. Hence we launched the Sanitary Gate with our Italian partners in March.

Since then, customers have been asking for a lightweight option suitable for temporary use and easy to freight, so we now offer the Sanitation Tunnel LITE.

A lightweight Sanitation Tunnel to protect society by decontaminating people, vehicles, equipment and goods.

Details

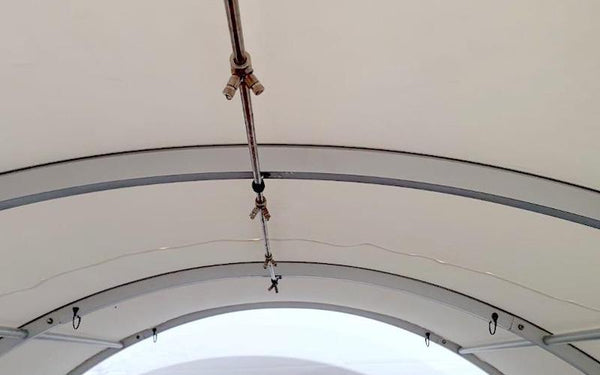

Our proven solution of Stretch Tunnels have been upgraded to integrate a spray system for the atomisation of sanitary biocides and virucides. The tunnel contains the atomised liquid spray inside to effectively saturate the environment. Thus it is possible to disinfect all surfaces even those which are not directly exposed to the nozzles.

Designed and manufactured in Australia, our Sanitation Tunnel LITE provides a versatile solution for preventing the spread of contagions.

• Fast assembly in a few hours
• Easy installation, modification or relocation as the frame is modular
• User and operator friendly
• We stock two standard sized tunnels, 2m and 3m profiles.
• We can customise the dimensions to suit when greater lead time is available.
• Branding the skin is an option.
• Different coloured skins are available.

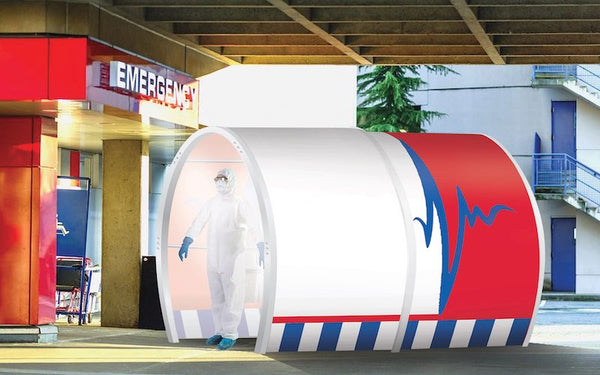

• Tunnels can be installed at the entrance of hospitals, pharmacies, airport terminals, public offices, supermarkets, ports, stations.

• Tunnels can be linked together or linked to existing structures or buildings.
• Suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.

Included in Package

Sanitation Tunnel

Standard white fabric skin
Standard aluminium frame
2m (6.5ft) L x 3m (10ft) W x 2.4m (8ft) H or 3m (6.5ft) L x 3m (10ft) W x 2.4m (8ft) H
150-160kg

Pump module

53cm L x 33cm W x 40 cm H
26kg

Misting box

40 cm L x 22cm H x 40 cm W
4 kg

Motion Sensor

Tunnel Installation Video

The below video shows how easy a Stretch Tunnel is to install.

View full product details »

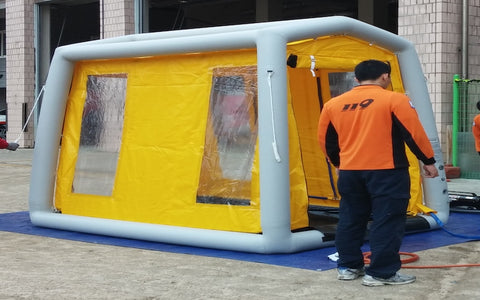

Inflatable Sanitisation and Decontamination Tunnel / Tent

$10,750.00 AUD

Inflatable Decontamination and Sanitization Tunnel
Overview
The Inflatable Decontamination and Sanitization Tunnel offers an efficient, fast, and reliable solution for comprehensive sanitation in various emergency and medical settings. Ideal for use by fire departments, medical facilities, and hospitals, this system ensures thorough disinfection of all surfaces through an atomized liquid spray, even reaching areas not directly exposed to the nozzles.

Key Features
Complete System: The tunnel comes fully equipped with an atomizing sanitization unit, including pre-installed plumbing hoses and nozzles for immediate use.

Ease of Use: Simply inflate the tunnel, and it’s ready for operation. Designed for quick setup and efficient decontamination.

Durable Construction:

High-Quality Materials: Rigid, high-quality inflatable fabrics maintain inflation for weeks without needing reinflation.
Weather Resistant: Capable of withstanding heavy rain and strong winds, making it suitable for various environmental conditions.
Robust Design: Built to be durable and resistant to wear and tear.
Rapid Deployment:

Fast Setup: Can be erected by just 2 to 4 people in under 5 minutes.
Compact Storage: After deflation, the tunnel can be packed into a compact bag for easy transport and storage.
Versatile Connectivity:

Additional Components: Easily connectable to other decontamination equipment such as water tanks, pressure control tanks, water heaters, and contaminated water storage solutions.
High Air Pressure Capacity: Durable frame supports high air pressure up to 0.35 Bar, with a built-in relief valve to prevent overpressure.
Applications
Fire Departments:
Post-Incident Decontamination: Effective for decontaminating fire equipment, gear, and personnel after responding to incidents involving hazardous materials. Ensures thorough cleaning of surfaces exposed to smoke, chemicals, and contaminants.
Medical and Hospital Wash-Down:
Infection Control: Ideal for sanitizing medical equipment, vehicles, and personnel in medical facilities and hospitals. Provides comprehensive disinfection to prevent the spread of infections and ensure a sterile environment.
Emergency Response: Useful in emergency situations where rapid decontamination is required to protect patients and medical staff from exposure to hazardous substances.
Benefits
Efficient Sanitization: Atomized spray provides thorough coverage, disinfecting all surfaces, including those not directly exposed to nozzles.
User-Friendly: Simple to set up and operate, making it suitable for a range of applications.
Long-Term Reliability: Designed for extended use and robust performance, ensuring a reliable solution for decontamination needs.

Technical Features

Frame material

- Heavy-duty inflatable fabric, 1000 Denier Polyester coated by PVC on both sides

- Durable up to holding 0.35bar air pressure and more - Weight : 1,100 g/m2

- Thickness : 0.9mm

- Tensile strength : FS#191 5102 - 400/340 Lbf/inch

- Tear strength : FS#191 5134 - 65/85 Lbf

- Adhesion : FS#191 5970 - 11.4 Lbf/Inch

- Elongation : FS#191 5102 - 20/30 %

Cover material

- Waterproof and fire retardant tent cover fabric

- 600D polyester coated by PU

- Weight: 250g/m2

- Tensile strength (ASTM D 5034) : 2045/1160 N

- Tear strength (ASTM D 1424) : 77/48 N

- Hot / Cold resistance: -40℃ ~ 50℃

- Fire retardant (CPAI 84): Passed

Instructions

Sanitary and decontamination inflatable tunnels and Gates represent a quick to install safe protection and entry for everyone, in particular for those who work in close contact with groups and are therefore at higher risk.

It can be installed at the entrance of events, public offices, pharmacies, supermarkets, airports, hospitals, ports, stations. It is suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.

Models

• DEC-2020 2 x 2 x 2.4m / 6.5' x 6.5'x 8'
• DEC-2030 2 x 3 x 2.4m / 6.5' x 10' x 8'
• DEC-TWINLINE 3.5 x 4.5 x 2.7m / 11' x 15' x 9'
• DEC-TRILINE 4 x 6 x 2.7m / 13' x 20' x 9'

Options

• SANITISING UNIT
• WATERHEATER-EL Fuel: Electric
• WATERHEATER-OIL Fuel: Oil
• CLEAN WATER TANK 200L
• WATER TANK BLADDER 200L
• PUMP
• FLOOR GRID
• CONVEYOR

Optional Extras

Item:Inflatable decontamination tent
Other ancillary equipment (Optional accessories)
Item Ph Size(
MM)

Technical Specification

Homogenising tank

140x200x
470mm

Uniform mix amount:
10-2500L/hHomogeneous concentration:
0.1-3%Water pressure:0.3-6 bar
Maximum water temperature:50°C
Weight:1.8 kg

Sewage pump

196x196x
316mm

Origin:Germany Diameter:25mm

Power:0.48kw
Number of revolutions:3000r/min

cable length:5M
Weight:12kg

Heating pressing all-in-one Water machine

940×600×
740mm

 Use electricity and diesel togetherVoltage:
220V/110V Origin:Germany water flow rate:
500 L/hPressure:120 bar

Maximum water temperature:140°CPower:
3.2Kw
Weight:84 kg

Cold Pressurised pump

water 400×395×
925mm

Origin: Germany Water Flow rate: 450
L/hPressure: 20~110 bar Maximum water
temperature: 60°C

Power: 2.5 Kw Weight: 16kg

Sprayer

Driving pressure: 3~7 bar Water flow rate:

20 L/minWeight: 25 kg
Features: Multiple nozzles, easy to carry,
lightweight, powerful, equipped with hose feet
that are not easy to break, and are rigid under
pressure

Heater

860x485 x 530mm

Use electricity and diesel togetherVoltage:
220V/110V Origin: Imported fromItalyHeat
output: 28KW24100 Kcal/h
Output hot air: 500m3/h
Fuel consumption: 2.78L/h
Fuel tank volume: 30L Voltage:
230V/50Hz Motor power: 150W

Packing size: 86*48.5*53cm
Weight: 31kg
Features: High thermal conversion rate, easy to
operate, simple installation, safe to use, tempe
control, cost saving, easy to move,long service l
lead-free surface, environmentally friendly

Alkali scrubber

Is used for the removal of acid-forming components during incineration processes in:

• Electricity plants
• Waste combustion installations;
• Electro industry
• Chemicals industry
• Chlorine production

250L recycling Sewage bag

Flooring Grate

500mm x 500mm

● Description:

Polypropylene

interlocking tiles
● Width
x Length
x Thickness mm:

508x 508x 25
● Colour: Grey

● interlocking With drainage holes.

● Ideal for showers, locker rooms,etc..

Available in grey & green

CBM frame water storage bag

This type of water bag has an air column frame structure, using the air column frame as a support point. It is used for the
supply of raw water, and can be used for the supply of snacks and disinfectants. Set water valve for easy use.Specifications: 3000
liters

Sewage recycling (sealed) bag
It is used to recycle decontamination liquid and is produced using high-frequency heat sealing technology. It's Available
in a variety of colors. Set up functional valves such as water inlet valve, exhaust valve, and drain valve.Specifications are
available in 1000 liters, 500 liters, 250 liters, etc.

Self-elevating water storage bag

This type of water bag can be used to store clean water or decontamination solution, and of course can also recycle sewage.

As the liquid is filled, the water bag rises synchronously with the rise of the water level due to buoyancy. Specifications are
available in 1000 liters, 500 liters, 250 liters, etc.
Product features:
This type of water bag adopts an open structure and can be used to recycle sewage and is also suitable for storing clean water or
decontamination solution. As the liquid is filled, the water bag rises synchronously with the water level due to buoyancy, making it
very convenient to use.
Cloth performance:
Made of PVC coated cloth
Thickness 0.70mm, weight 896.5g/m2
Tear strength: radial 384N, lateral 298.3N
Peeling load: 105.8N/5cm in radial direction, 93.1N/5cm in lateral direction Temperature resistance
-40°C~70°C
Sunlight fastness>5
Flame retardant performance: 1st class

View full product details »

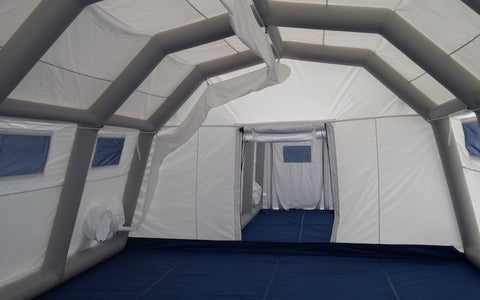

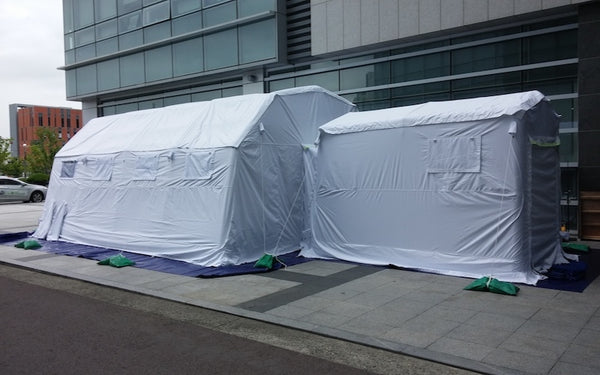

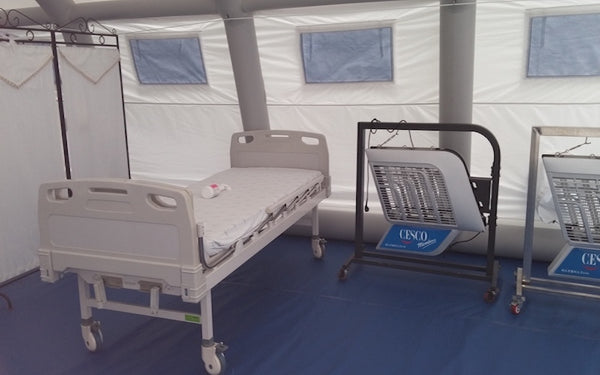

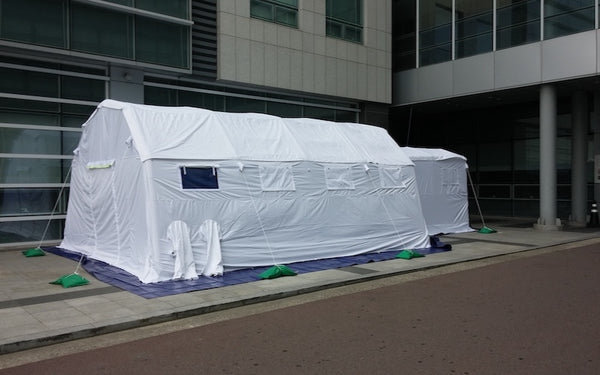

Negative Pressure Inflatable Medical or Industrial Tent

$16,300.00 AUD

Our easy to install inflatable Negative Pressure tent is designed to create a negative pressure environment inside the tent and reduce the risk of contamination.

What it is used for

- Triage medical tent for respiratory virus or contagious assessment

- Isolation or Intensive Care Unit (ICU)

- Medical tent

- Industrial safety tent

Features

Features of our Negative Pressure inflatable tent are

- Prevents the spread of contaminated air

- Provides more than 2.5 Pascal negative pressure when entry door is closed and sealed.

- 12 ACH (Air changes per hour) is possible with proper negative pressure unit.

- Rapid and easy deployment

- There are Pass boxes on the side of tent wall for access pipes or electrical ducting

Specifications

- Frame: Airtight inflatable fabric, 26 ~38 oz, 0.65mm ~ 0.9mm thick, Durable enough against

4.3 psi (Inside frame pressure)

- Cover: 600Deniar polyester coated by Polyurethane, Waterproof, Fire retardant and UV

treated. 0.4mm thick, 10oz

- Tent size: 13’ x 13’

- Tent height: 9’

- Weight: 150 lbs

- Time to inflate: About 5 minutes

- Custom sizes are available
