The Leading Supplier of Stretch Tents and Rapid Deployment Structures
Wide Range of Outdoor Fabric Structures for All Purposes
If you are new to stretch tents, prepare to be amazed! You'll soon realise that you have just found one of the most unique, fun and flexible structures on the planet. If you have used our products, you already know exactly what we are talking about. Check out our many other inflatable and fabric structures and add WOW to your events! Our creative design team are always adding new and exciting structures that will be sure to inspire you and are customisable for your next event!

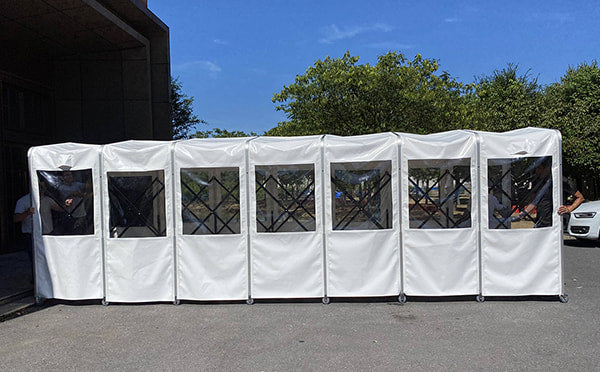

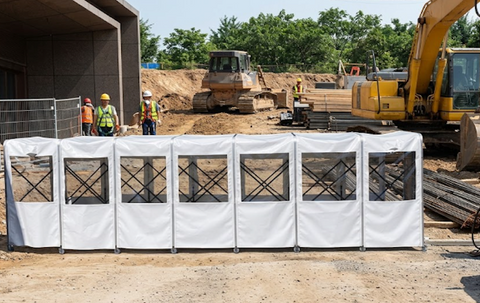

Our retractable tunnel concept is incredibly versatile and lends itself to a range of applications. Each order can be designed and manufactured according to clients needs. Large, small, fixed or retractable - whatever your situation, our Design & Installation team can find a solution to your search.
Folding garages, football tunnels, weatherproof walkways or temporary warehouses - no problem. Whichever industry, the right application is available: sports, retail or leisure
Designed and manufactured in Europe, our retractable tunnel solutions provide a perfect versatile solution
Maintenance-free for reduced total lifetime investment.
Space saving: a 5 mts tunnel can be retracted up to a minimum of 35 cms when not in use (this is a Rb1 tunnel on nylon wheels)
Suitable for permanent or temporary installation
Easy installation, modification or relocation as the frame is modular and expandable.
User and operator friendly
Coloured roofs and frames, clear windows and covers, curtains (sliding or with central opening) branding and signwriting are available.
Tunnels can be linked together or linked to existing structures or buildings (flashing and plates are available to facilitate a smooth connection)
Completely tailored, made to measure and fully customizable to site's requirements
Innovative and unique design
Long-lasting and cost effective
Widths: from 1 mt up to 12 mts
Eave height: from 1.8 mts up to 5 mts
Reduced height tunnels - roof only systems - wall mounted models either single and double pitch, fixed, curved, sloped modules, bespoke sizes smaller or larger are available upon request
Wheel Options: pneumatic tyres, nylon wheels (with and without lift proof tracks) multi-directional pneumatic tyres, multi-directional nylon wheels, heavy duty wheels and much more.
Eyelets, stainless steel tracks, safety straps, handles to pull the tunnel back as an option
covers are made from single panels, each a metre wide, which are fitted into the profile’s groove with a kader strip on both sides
FAQ
Can I buy an off the shelf product?
No. All tunnels are made to order.
What colour and material is the frame made of?
Silver anodised aluminium frame.
What secures the tunnel once it's extended to its' full length?
Pantograph tensioning levers. Colour RAL 9006.
What fabric and colours are the covers made from?
Fabric Poly RS ADR 650 GSM. Standard colours: White, Grey, Champagne, Black and Green.
Clear Crystal plus PVC available.
Blackout PVC available.
Windows and clear roof available.
Are the tunnels fire rated?
All tunnels are fire rated to:
UNI EN 13782:2015.
USA NFPA 701.
Australia AS 1530.
What type and size are the wheels?
Nylon wheels 125mm /4.9".
Optional lift proof tracks.
Pneumatic / rubber wheels 140mm-200mm / 5.5-8".
What is the maximum size of a tunnel?
Max width: 15m / 50'
Max height: 5m / 16'6" (eave)
Max length: there is no minimum or maximum length.
What is the retracted length?
For a 10m /33' tunnel retracts to 67cm / 2' 3"
Can the tunnel go on sloped ground?
Can be sloped Vertically.
Can the tunnel bend sideways?
Horizontally up to 90 degrees.
Does the tunnel have a wind loading?
Supported by the proper anchoring system and with the application of tensioning straps, tunnels have a wind resistance of 100klph / 62MPH.
How do you anchor / secure the tunnel if necessary?
Wall fix brackets
Ground fix brackets
Concrete or water weights with tensioning straps
Is the tunnel difficult to deliver?
No. It's easily freighted in custom solid timber boxes
QZEBO is the new revolutionary modern gazebo. With an innovative design that does away with the traditional pitched roof, replaced by a slight hint of a rise. Making the whole structure more linear and elegant without affecting the practicality and speed of set up.
The QZEBO can be installed quickly, at almost any location and come with optional extras, such as, fabric zip roller walls, glass sliding doors/walls, heating or cooling options and flooring.
The standard range of QZEBO gazebos are available in width spans from 3m through to 5m. We also offer the opportunity to customise to suit a variety of spans, lengths and heights.
The modular design enables QZEBO cubes to be linked easily to further expand your usable outdoor space without having destructive works carried out.
QZEBO allows users to create solutions for cost effective and attractive venues. They are perfect for outdoor dining at bars and restaurants, providing cover for walkways, highlighting your products at trade shows, or to stylishly decorate a private garden or terrace.
Instructions
FAQ
What choices do I have for the frame color?
Frame colors include White, Grey, Dove Grey, and Dark Brown as standard options. Additionally, there is an array of custom colors available for an extra cost.
What are the available color options for the fabric roof?
You can select from standard roof cover colors such as White, Grey, Dove Grey, and Champagne. Moreover, there is a range of additional colors available for an extra fee.
What materials are used for the fabric roof?
The fabric roof is crafted from high-quality materials, with options including Ferrari 502 (570 gsm) and 602 (650gsm) to suit your specific requirements.
Are there various setup options available?
Yes, freestanding or wall-mounted configurations on of many options.
Do these products have fire safety certifications?
Yes, all Qzebos are rated:
UNI EN 13782:2015
USA NFPA 701
Australia AS 1530
What size options are offered for these products?
Available sizes include 3m x 3m, 4m x 4m, 5m x 5m, 3m x 4m, 3m x 5m, and 4m x 5m.
Is it possible to connect multiple units together, and if so, are there flexible configuration options available for joining them?
Yes, Qzebo can be joined in any configuration with an array of joining components available.
What solutions are provided for managing water runoff, especially for joined configurations?
There Is an internal gutter and down pipe system for joined structures and external gutter for single units
What choices are available for wall options with this product?
You can select from walls with strap attachments and roller blind walls with zippers, opt for fabric walls in plain, windowed, mesh, or clear PVC variants, choose sheer curtains with a central opening, or even opt for glass walls.
Is there lighting available for these products?
Yes, you have the option of adding lighting, including perimeter LED lights and LED spotlights.
Is integrated flooring an option?
Yes, you can opt for the Modular Horizon flooring solution.
Stretchflex stretch marquees come in a variety of standard shapes, sizes and colours, or you can work with our professional designers to create nearly any structure you can imagine with colours and printed logos & branding to make it uniquely yours.
Because of the incredible stretch in our stretchflex range, they create designs & configurations that are guaranteed to draw a crowd wherever you set it up. Add lights, lycra, stretch event architecture and inflatable structures to any of our stretch marquees and you've got a combination that will instantly take your event to the next level.
Our Stretchflex tent is a lighter alternative tent option providing you with similar properties and stretch as our flagship fabric, Bedouinflex. These would suit perfectly for any occasional events that require the amazing look of our modern freeform stretch tent provides at such things as roadshows, festivals, occasional events, etc.
If you are a hire company, or a pub or restaurant looking for a stretch tent to remain installed for longer periods of time or to be used constantly for many years, please look at our Bedouinflex stretch tents which are designed for this purpose.
Strong machine stitched and welded edges and seams
Standard size tents available along with custom tents in any shape or any size
up to 20m x 15m (66' x 50') in size for a single tent
modular waterproof solutions to cover even the largest event
100% Waterproof̴
Stretch polyamide (nylon) knit coated with a polymeric PU waterproof coating on both sides
Strongest machine stitched and welded edges and seams
Fire and safety compliant
FR Impregnated (not coated) with fire retardant chemicals
Certified to the following international standards
AUSTRALIA and NEW ZEALAND standards AS1503.3:1999 and AS 1530.3:1992
EU standard EN13501-1:2007
US standards NFPA 701:2010 & NFP705:2009
BRITISH standard BS7837:1996
GERMAN standard DIN4102-Part1:1992 B2 classification
FRENCH standard NFP92.503 Performance level M2
UV stabilised by Fluorocarbon impregnation
Non toxic anti-Microbial application (viral, bacterial, fungal)
Breaking load of 1.8 tonne on any point
2.2m Width seams
Lightweight 330g/m2
All seams are stitched and welded for extra strength and durability
Both sides waterproof coating ensures quick runoff & fast drying times
Dirt repellent & machine washable up to 75 deg C
Can also be cleaned onsite using high pressure hoses and soft detergents
Easily repaired without compromising the tents waterproofing
Tents can be seamlessly repaired by heat application of patch to either side of the fabric
All tents are supplied with simple to apply elastic clear repair tape for quick application repairs
Brandable fully printable with CMYK + white dye sublimation, digital or screen printing
Wind proof up to wind force 7 (61 kph).
Wide range of colours with options for two-tone colours (e.g. white on top, silver underneath)
Perfectly suited for the small hire company. promotional event, or occasional entertainer
Inclusions and colour range
Each tent package is supplied with the stretch tent roof including connector and banner tabs, Heavy duty PVC transport bag, along with the centre pole caps, edge pole caps, and quick tape repair kit
Our tents in the Stretchflex fabric are available in white, sand and red. Please see the Bedouinflex for a full range of colours.
Pole Pack Option
ALL TENT PACKAGES ARE AVAILABLE TO SHIP IMMEDIATELY AND INCLUDE THE POLES, PEGS, TENSIONING CLEATS AND ROPE
ST ACPACP Includes collapsible High grade 6005/T6 Aluminium Poles, Pole Stand, Snap hooks, Flying rings, PVC Industrial carry bags
As countries gear up to fight the spread of COVID-19, there is a requirement for products to help fight the spread of contagions. Hence we launched the Sanitary Gate with our Italian partners in March.
Since then, customers have been asking for a lightweight option suitable for temporary use and easy to freight, so we now offer the Sanitation Tunnel LITE.
A lightweight Sanitation Tunnel to protect society by decontaminating people, vehicles, equipment and goods.
Details
Our proven solution of Stretch Tunnels have been upgraded to integrate a spray system for the atomisation of sanitary biocides and virucides. The tunnel contains the atomised liquid spray inside to effectively saturate the environment. Thus it is possible to disinfect all surfaces even those which are not directly exposed to the nozzles.
Designed and manufactured in Australia, our Sanitation Tunnel LITE provides a versatile solution for preventing the spread of contagions.
Fast assembly in a few hours
Easy installation, modification or relocation as the frame is modular
User and operator friendly
We stock two standard sized tunnels, 2m and 3m profiles.
We can customise the dimensions to suit when greater lead time is available.
Branding the skin is an option.
Different coloured skins are available.
Tunnels can be installed at the entrance of hospitals, pharmacies, airport terminals, public offices, supermarkets, ports, stations.
Tunnels can be linked together or linked to existing structures or buildings.
Suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.
Included in Package
Sanitation Tunnel
Standard white fabric skin Standard aluminium frame 2m (6.5ft) L x 3m (10ft) W x 2.4m (8ft) H or 3m (6.5ft) L x 3m (10ft) W x 2.4m (8ft) H 150-160kg
Pump module
53cm L x 33cm W x 40 cm H 26kg
Misting box
40 cm L x 22cm H x 40 cm W 4 kg
Motion Sensor
Tunnel Installation Video
The below video shows how easy a Stretch Tunnel is to install.
The serious global situation has led us to create a solution that can be of public value: a disinfection tunnel with an integrated, hydraulic system for the atomisation of any biocides and virucides. The tunnel contains the atomised liquid spray inside to effectively saturate the environment.
In this way it is possible to disinfect all surfaces even those which are not directly exposed to the nozzles.
Designed and manufactured in Europe, our Sanitation tunnel solutions provide a perfect versatile solution
Sanitary and decontamination Tunnels and Gates represent a safe protection and entry for everyone, in particular for those who work in close contact with groups and are therefore at higher risk.
It can be installed at the entrance of public offices, pharmacies, supermarkets, airports, hospitals, ports, stations. It is suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.
How it Works
The tunnel creates an obligatory passage and is equipped with, internal arc-shaped atomising nozzles that saturate the environment but preventing dispersions.
The nebulisation system is connected to a control system capable of automatically mixing the sanitising product at percentages indicated by the manufacturer.
Access to the tunnel is regulated by a traffic light with motion detection. By placing a barrier floor inside the Sanitary Gate, it is possible to sanitise the surface in contact with the ground
Technical Features
Fast assembly in a matter of hours to a few days.
Foundation-free.
Maintenance-free for reduced total lifetime investment.
Space saving: a standard 4 mts tunnel can be retracted up to a minimum of 35 cms when not in use (this is a Rb1 tunnel on nylon wheels)
Suitable for permanent or temporary installation
Easy installation, modification or relocation as the frame is modular and expandable.
User and operator friendly
Coloured roofs and frames, clear windows and covers, curtains (sliding or with central opening) branding and signwriting are available.
Tunnels can be linked together or linked to existing structures or buildings (flashing and plates are available to facilitate a smooth connection)
Completely tailored, made to measure and fully customizable to site's requirements
Innovative and unique design
Long-lasting and cost effective
Widths: from 2.5 mt up to 12 mts
Eave height: from 1.8 mts up to 5 mts
Reduced height tunnels - roof only systems - wall mounted models either single and double pitch, fixed, curved, sloped modules, bespoke sizes smaller or larger are available upon request
Wheel Options: pneumatic tyres, nylon wheels (with and without lift proof tracks) multi-directional pneumatic tyres, multi-directional nylon wheels, heavy duty wheels and much more.
Eyelets, stainless steel tracks, safety straps, handles to pull the tunnel back as an option
covers are made from single panels, each a metre wide, which are fitted into the profile’s groove with a kader strip on both sides
Negative Pressure Inflatable Medical or Industrial Tent
$16,300.00 AUD
Our easy to install inflatable Negative Pressure tent is designed to create a negative pressure environment inside the tent and reduce the risk of contamination.
What it is used for
- Triage medical tent for respiratory virus or contagious assessment
- Isolation or Intensive Care Unit (ICU)
- Medical tent
- Industrial safety tent
Features
Features of our Negative Pressure inflatable tent are
- Prevents the spread of contaminated air
- Provides more than 2.5 Pascal negative pressure when entry door is closed and sealed.
- 12 ACH (Air changes per hour) is possible with proper negative pressure unit.
- Rapid and easy deployment
- There are Pass boxes on the side of tent wall for access pipes or electrical ducting

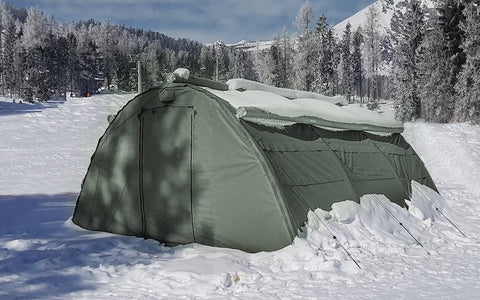

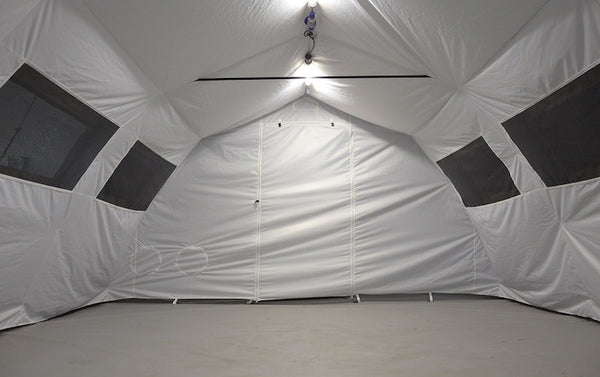

Modular high-pressure inflatable shelter system for general or long-term use (decontamination unit, base camp, field hospital, refugee camp ..).
Its tough structure is made of heavy duty seamless pneumatic tubes of 6’’ diameter, working pressure in tubes is 3-8 bar. Thanks to the high pressure, PRO shelters are strong wind and temperature fluctuation resistant.
Inflatable Sanitisation and Decontamination Tunnel / Tent
$10,750.00 AUD
Inflatable Decontamination and Sanitization Tunnel Overview The Inflatable Decontamination and Sanitization Tunnel offers an efficient, fast, and reliable solution for comprehensive sanitation in various emergency and medical settings. Ideal for use by fire departments, medical facilities, and hospitals, this system ensures thorough disinfection of all surfaces through an atomized liquid spray, even reaching areas not directly exposed to the nozzles.
Key Features Complete System: The tunnel comes fully equipped with an atomizing sanitization unit, including pre-installed plumbing hoses and nozzles for immediate use.
Ease of Use: Simply inflate the tunnel, and it’s ready for operation. Designed for quick setup and efficient decontamination.
Durable Construction:
High-Quality Materials: Rigid, high-quality inflatable fabrics maintain inflation for weeks without needing reinflation. Weather Resistant: Capable of withstanding heavy rain and strong winds, making it suitable for various environmental conditions. Robust Design: Built to be durable and resistant to wear and tear. Rapid Deployment:
Fast Setup: Can be erected by just 2 to 4 people in under 5 minutes. Compact Storage: After deflation, the tunnel can be packed into a compact bag for easy transport and storage. Versatile Connectivity:
Additional Components: Easily connectable to other decontamination equipment such as water tanks, pressure control tanks, water heaters, and contaminated water storage solutions. High Air Pressure Capacity: Durable frame supports high air pressure up to 0.35 Bar, with a built-in relief valve to prevent overpressure. Applications Fire Departments: Post-Incident Decontamination: Effective for decontaminating fire equipment, gear, and personnel after responding to incidents involving hazardous materials. Ensures thorough cleaning of surfaces exposed to smoke, chemicals, and contaminants. Medical and Hospital Wash-Down: Infection Control: Ideal for sanitizing medical equipment, vehicles, and personnel in medical facilities and hospitals. Provides comprehensive disinfection to prevent the spread of infections and ensure a sterile environment. Emergency Response: Useful in emergency situations where rapid decontamination is required to protect patients and medical staff from exposure to hazardous substances. Benefits Efficient Sanitization: Atomized spray provides thorough coverage, disinfecting all surfaces, including those not directly exposed to nozzles. User-Friendly: Simple to set up and operate, making it suitable for a range of applications. Long-Term Reliability: Designed for extended use and robust performance, ensuring a reliable solution for decontamination needs.
Technical Features
Frame material
- Heavy-duty inflatable fabric, 1000 Denier Polyester coated by PVC on both sides
- Durable up to holding 0.35bar air pressure and more - Weight : 1,100 g/m2
Sanitary and decontamination inflatable tunnels and Gates represent a quick to install safe protection and entry for everyone, in particular for those who work in close contact with groups and are therefore at higher risk.
It can be installed at the entrance of events, public offices, pharmacies, supermarkets, airports, hospitals, ports, stations. It is suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.
Uniform mix amount: 10-2500L/hHomogeneous concentration: 0.1-3%Water pressure:0.3-6 bar Maximum water temperature:50°C Weight:1.8 kg
Sewage pump
196x196x 316mm
Origin:Germany Diameter:25mm
Power:0.48kw Number of revolutions:3000r/min
cable length:5M Weight:12kg
Heating pressing all-in-one Water machine
940×600× 740mm
Use electricity and diesel togetherVoltage: 220V/110V Origin:Germany water flow rate: 500 L/hPressure:120 bar
Maximum water temperature:140°CPower: 3.2Kw Weight:84 kg
Cold Pressurised pump
water 400×395× 925mm
Origin: Germany Water Flow rate: 450 L/hPressure: 20~110 bar Maximum water temperature: 60°C
Power: 2.5 Kw Weight: 16kg
Sprayer
Driving pressure: 3~7 bar Water flow rate:
20 L/minWeight: 25 kg Features: Multiple nozzles, easy to carry, lightweight, powerful, equipped with hose feet that are not easy to break, and are rigid under pressure
Heater
860x485 x 530mm
Use electricity and diesel togetherVoltage: 220V/110V Origin: Imported fromItalyHeat output: 28KW24100 Kcal/h Output hot air: 500m3/h Fuel consumption: 2.78L/h Fuel tank volume: 30L Voltage: 230V/50Hz Motor power: 150W
Packing size: 86*48.5*53cm Weight: 31kg Features: High thermal conversion rate, easy to operate, simple installation, safe to use, tempe control, cost saving, easy to move,long service l lead-free surface, environmentally friendly
Alkali scrubber
Is used for the removal of acid-forming components during incineration processes in:
Electricity plants
Waste combustion installations;
Electro industry
Chemicals industry
Chlorine production
250L recycling Sewage bag
Flooring Grate
500mm x 500mm
● Description:
Polypropylene
interlocking tiles ● Width x Length x Thickness mm:
508x 508x 25 ● Colour: Grey
● interlocking With drainage holes.
● Ideal for showers, locker rooms,etc..
Available in grey & green
CBM frame water storage bag
This type of water bag has an air column frame structure, using the air column frame as a support point. It is used for the supply of raw water, and can be used for the supply of snacks and disinfectants. Set water valve for easy use.Specifications: 3000 liters
Sewage recycling (sealed) bag It is used to recycle decontamination liquid and is produced using high-frequency heat sealing technology. It's Available in a variety of colors. Set up functional valves such as water inlet valve, exhaust valve, and drain valve.Specifications are available in 1000 liters, 500 liters, 250 liters, etc.
Self-elevating water storage bag
This type of water bag can be used to store clean water or decontamination solution, and of course can also recycle sewage.
As the liquid is filled, the water bag rises synchronously with the rise of the water level due to buoyancy. Specifications are available in 1000 liters, 500 liters, 250 liters, etc. Product features: This type of water bag adopts an open structure and can be used to recycle sewage and is also suitable for storing clean water or decontamination solution. As the liquid is filled, the water bag rises synchronously with the water level due to buoyancy, making it very convenient to use. Cloth performance: Made of PVC coated cloth Thickness 0.70mm, weight 896.5g/m2 Tear strength: radial 384N, lateral 298.3N Peeling load: 105.8N/5cm in radial direction, 93.1N/5cm in lateral direction Temperature resistance -40°C~70°C Sunlight fastness>5 Flame retardant performance: 1st class

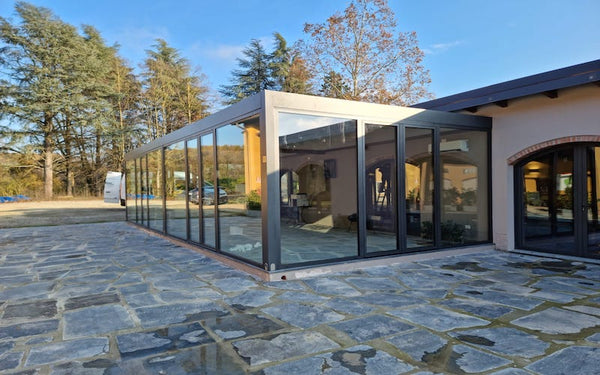

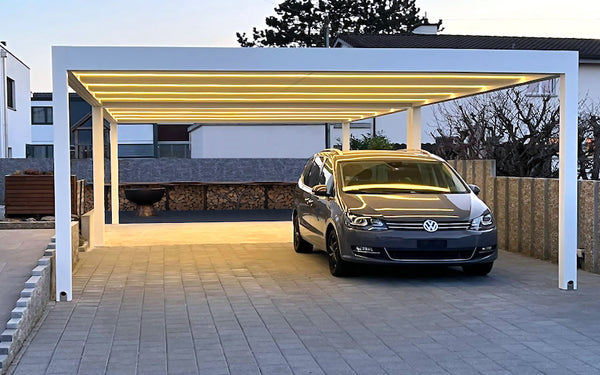

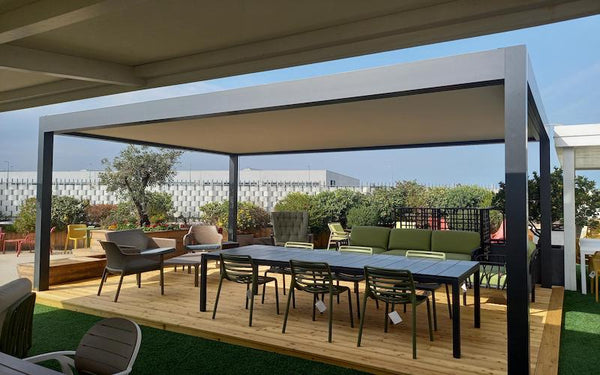

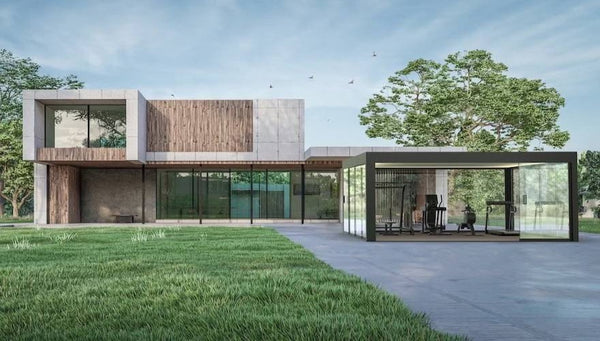

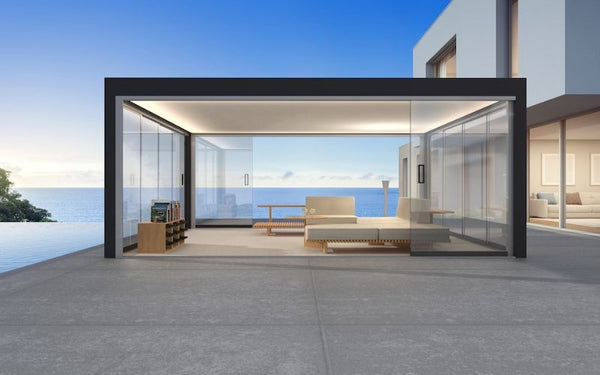

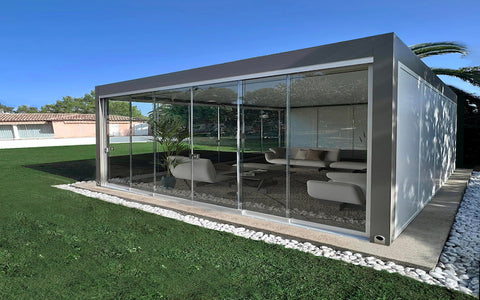

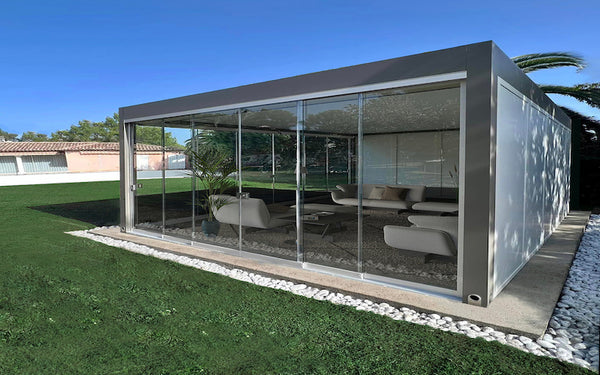

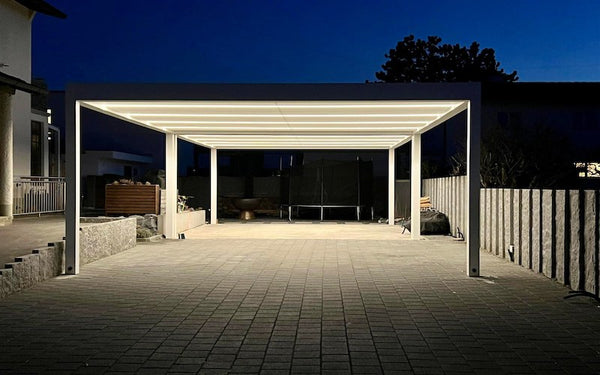

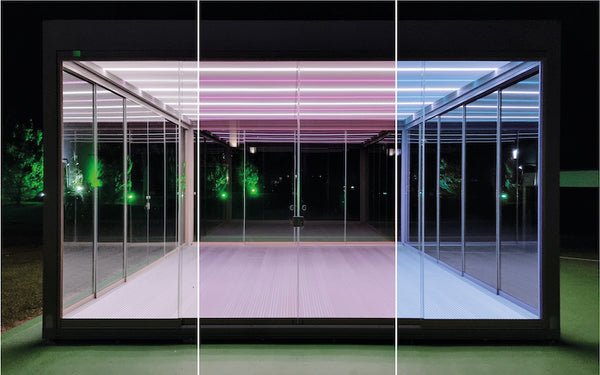

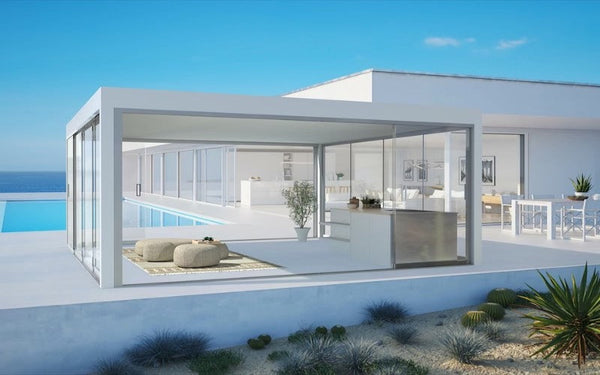

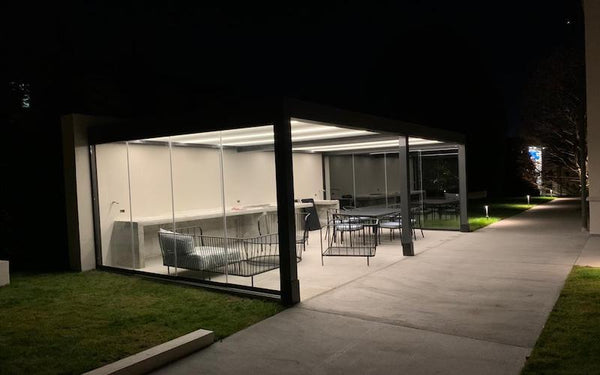

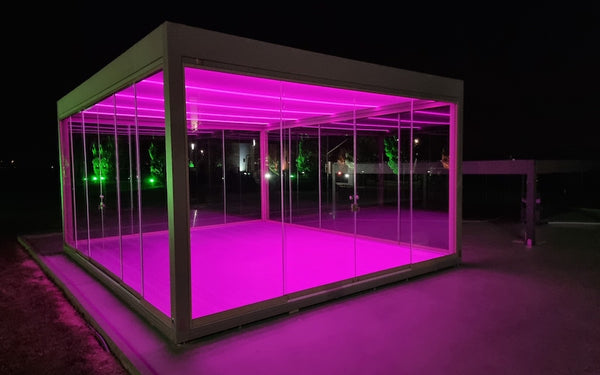

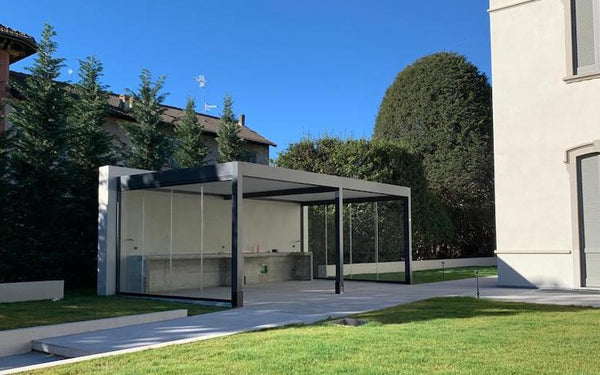

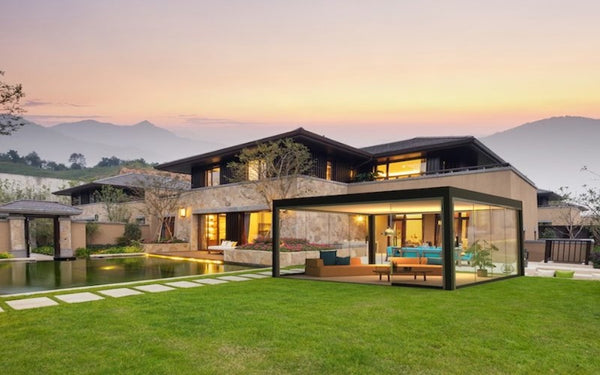

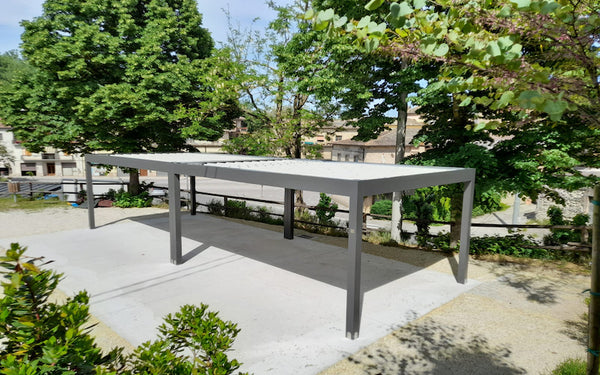

ECLETTICA is a unique, elegant structure which is waterproof, visually stunning and designed to minimise acoustic reverberation.
The main point of difference from the QZEBO is the fixed roof with integrated ambient lighting and sound absorption technology. The ECLETTICA roof is made from soundproof panels to reduce noise pollution, hence provides a peaceful environment to enjoy.
It can be installed quickly, at almost any location. For example, a 5m x 6m can be assembled in 4 hours by 2 people with lifting equipment. ECLETTICA does not require maintenance or after-sales services.
The standard range of ECLETTICA gazebos are available in width spans from 3m through to 6m. We also offer the opportunity to customise to suit a variety of spans, lengths and heights.
The modular design enables ECLETTICA cubes to be linked easily to further expand your usable outdoor space without having destructive works carried out.
The ECLETTICA would be a stylish addition to any domestic garden or terrace for private use, and is perfect for the hospitality industry hosting outdoor dining at bars, restaurants and boutique hotels.
Features
Waterproof and watertight
Insulation system with 30/70 mm thick sandwich panels that provide thermal insulation, soundproofing and thermo-acoustic insulation
Soundproofing roof using sound-absorbing panels with rock wool, 70 mm thick, which guarantee the limitation of reverberation close to T 0
The thermal break panel eliminates the problem of condensation
Integrated rainwater drainage in the columns
Integrated under-roof lighting system with LED strip or RGB indirect light
Perimeter walls with drop-down curtains ZIP technology or sliding glass panels to match the structure
Optional extra of installing photovoltaic panels
FAQ
What is Eclettica, and what are its key features?
Eclettica is a pergola with a false ceiling designed to reflect sound waves on its walls. It also features a roof suitable for the installation of solar panels, allowing you to generate energy from renewable sources.
Why is Eclettica considered a harmonic synthesis of different technologies?
Eclettica combines various technologies to address the growing demand for ecological solutions and the need for all-around comfort, including considerations for acoustics and aesthetics.
What is unique about the design of Eclettica?
The distinguishing feature of Eclettica is its sober, simple, and essential lines. It has a forward-looking design that encourages interactions between communities and nature while producing renewable energy.
How does Eclettica enhance acoustics and visuals?
Eclettica's design includes a false ceiling equipped with a membrane and panels that reflect sound waves. It also offers the option to install solar panels on its roof, enhancing both acoustic and visual aspects.
What is the advantage of having solar panels on the roof of Eclettica?
Solar panels on the roof of Eclettica allow you to harness renewable energy from the sun, reducing your carbon footprint and contributing to sustainability.
Are there color and finish options for Eclettica?
Eclettica features warm colors and a matte finish, painted with high-resistance epoxy powder. This enhances the product's quality and durability while giving it a cozy appearance that complements natural elements.
Can Eclettica be customized with additional accessories?
Yes, Eclettica can be complemented with various accessories, including sliding edging profiles with PVC or glass membranes, decorative drapes, telescopic features, and glass windshields. These options allow you to tailor Eclettica to your specific needs and preferences.
Is Eclettica suitable for both residential and commercial use?
Eclettica can be used in both residential and commercial settings, making it versatile for various applications, such as creating comfortable outdoor spaces in homes or enhancing the ambiance of commercial establishments.
How can I obtain more information about Eclettica, including pricing and installation details?
For detailed information about Eclettica, including pricing, installation guidelines, and availability, please contact the manufacturer or supplier directly. They will be able to provide you with specific product details and assist with your inquiries.
Is Eclettica designed to withstand outdoor weather conditions?
Eclettica is designed to withstand outdoor weather conditions, but the durability may vary depending on factors like the climate and the specific accessories chosen. It's advisable to discuss your requirements with the manufacturer to ensure the product suits your environment.
How much snow load can Eclettica withstand?
Eclettica can support snow loads of up to 50 kg per square meter (100 kg per square meter in the reinforced version) and is designed to withstand wind forces.
Does Eclettica offer thermal control?
Yes, Eclettica features an isothermal cover with sandwich panels that helps maintain a controlled internal temperature, enhancing comfort in various weather conditions.
Can Eclettica provide acoustic control?
Absolutely, Eclettica allows for the integration of sound-absorbing panels, which can reduce environmental noise and provide maximum acoustic comfort.
Is Eclettica an eco-friendly choice?
Yes, Eclettica can integrate various types of photovoltaic modules, making it a sustainable choice for harnessing solar energy. There's also an option for an integrated turnkey photovoltaic system, known as the Eclettica Solar Power photovoltaic pergola.
What other features does Eclettica offer?
Eclettica comes with a simplified structure requiring minimal maintenance. It offers integrated drainage, LED lighting, and optional drop-down curtains and sliding glass that seamlessly integrate with the structure.
What are the dimensions of the standard module for Eclettica?
The maximum dimensions of the self-supporting standard module are 500 x 600 cm, with a maximum total height of 326 cm. Eclettica is available in square or rectangular shapes.
What is the supporting frame made of?
The supporting frame of Eclettica is 100% aluminum, designed with typical Italian craftsmanship.
What are the standard frame colors available for Eclettica?
The standard frame colors include White (matt), Dove Grey (matt), Dark Brown (matt), and Special Grey (smooth). Additional colors from the RAL range with smooth glossy or smooth matt finishes are available upon request.
What type of fabric is used for the roofing sheet?
Eclettica uses mainly Precontraint PVC fabric by Ferrari, a renowned manufacturer of structural fabric used in tensile structures.
What optional features are available for Eclettica?
Optional features for Eclettica include sliding closures with side openings, sliding glass windows, VOK roller blinds, sliding rollers with zips (complete with case and side rails), and a lighting system called Stip LED.
Can I have flooring?
Yes we can provide integrated Horizon flooring for every size.

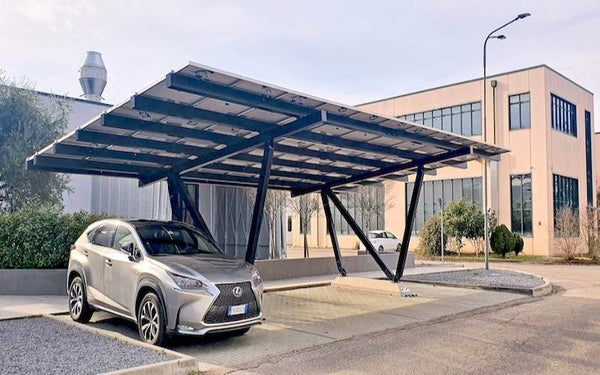

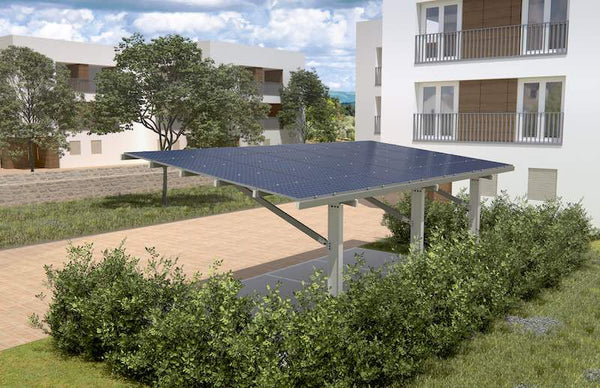

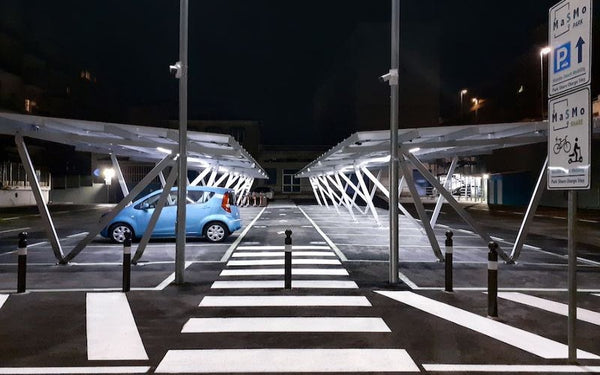

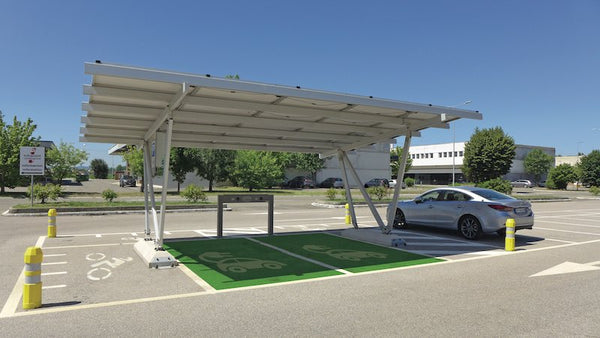

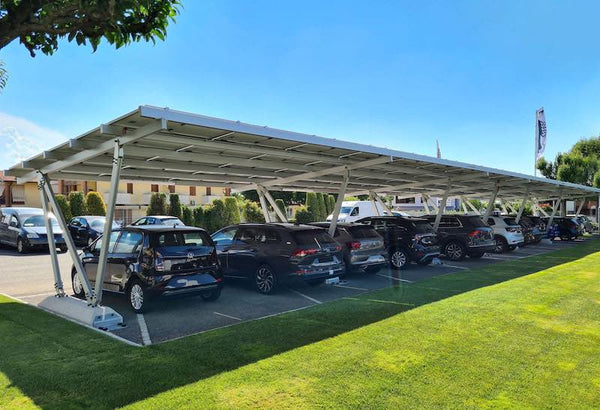

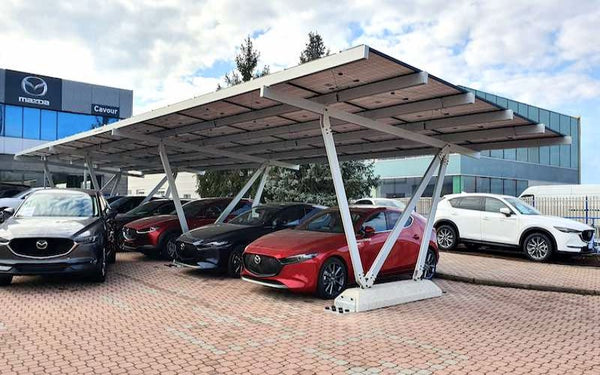

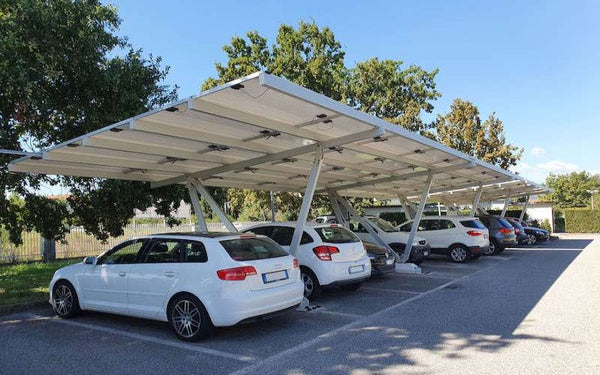

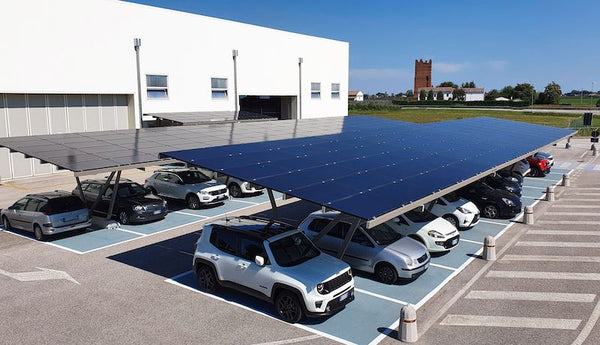

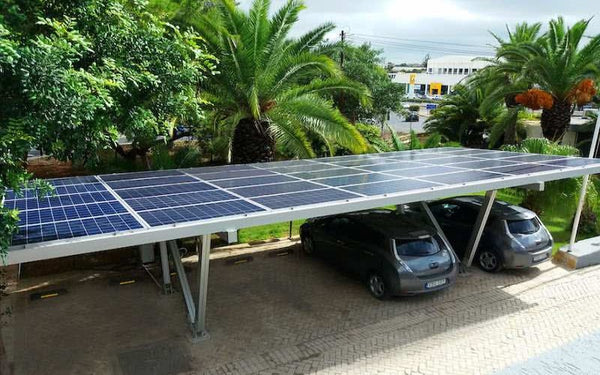

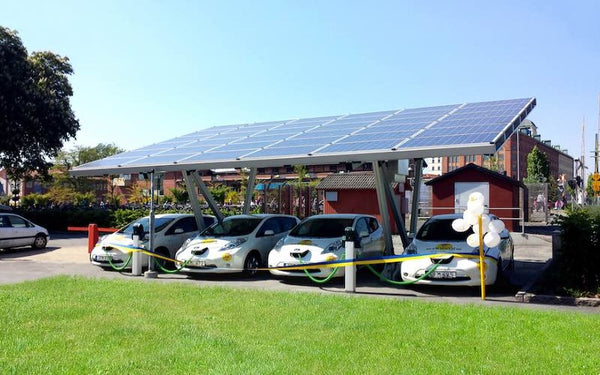

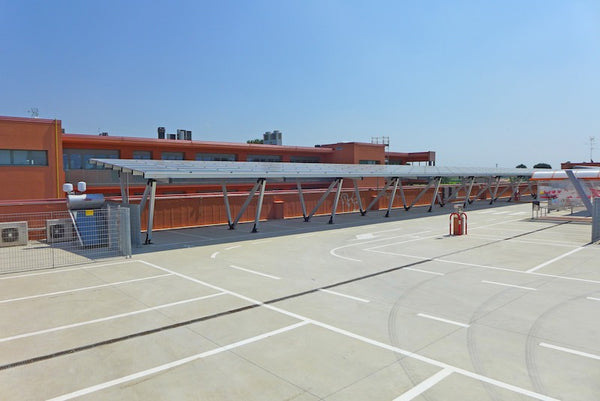

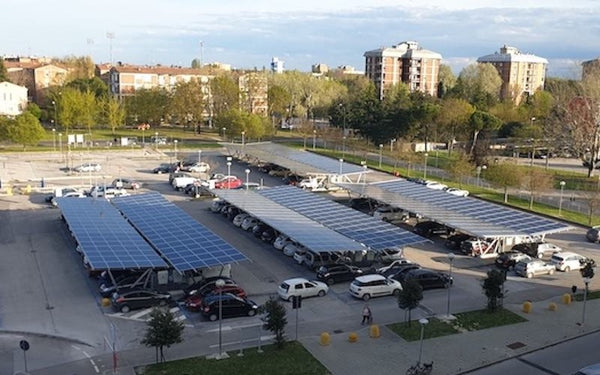

Pensilsole Solar Carport is an aluminium photovoltaic carport. Manufactured in Europe, the Pensisole is an elegant solution for assisting client's to generate solar energy for self-consumption.

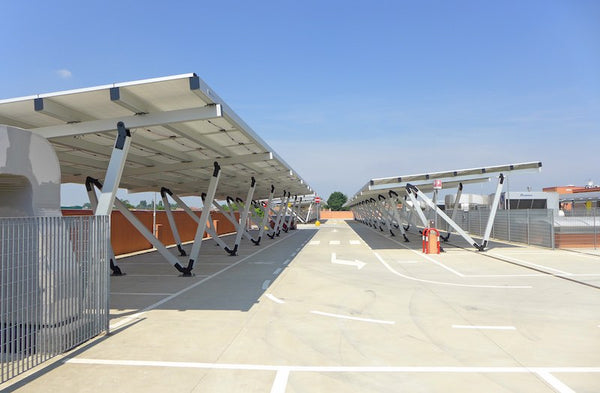

Pensilsole Standard - Middle or Maxi
Pensilsole Standard can be quickly installed, and can also accommodate advertising panels to the profiles to maximise visibility of your brand.
Ground fastening systems:
Installation without foundation works with reinforced concrete ballast bases. We suggest using ballasts on asphalt, concrete and on driveways in self-locking bricks. This solution is faster to install.

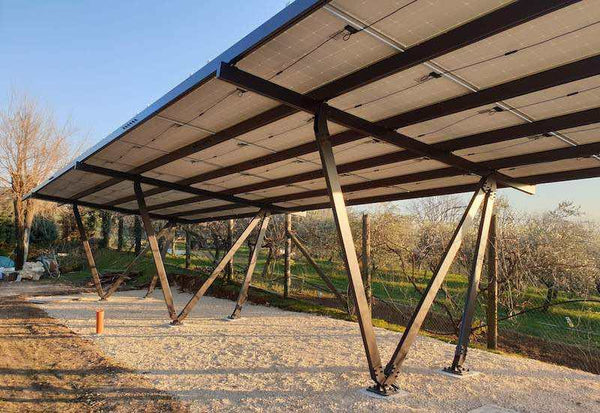

Installation with special steel plates on reinforced concrete foundations. We suggest using anchor plates for bigger works and on non-stabilised soils. Foundation works are required when using anchor plates.

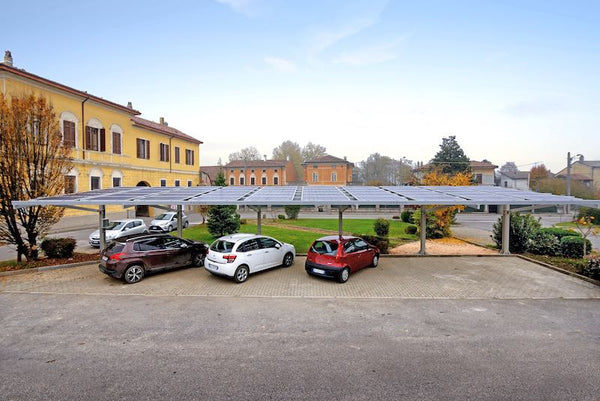

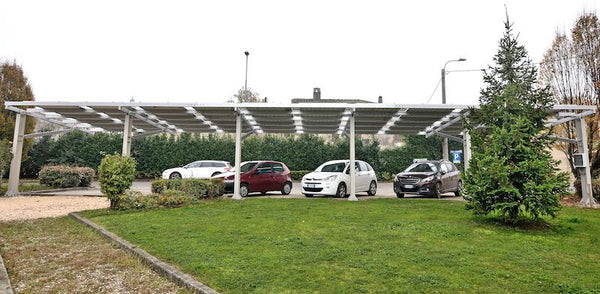

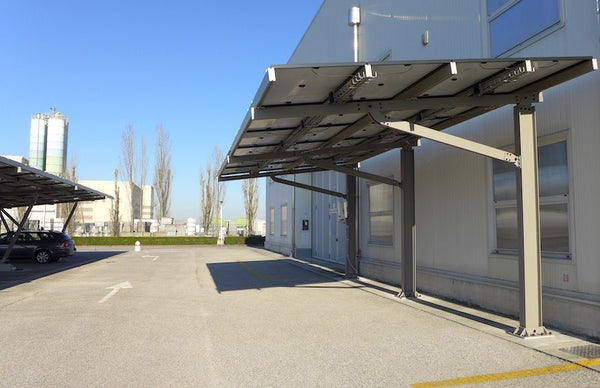

Pensilsole Cantilever
Pensilsole Cantilever gives cars maximum freedom to manoeuvre by reducing the frame works attached to the ground.
Ground fastening systems:
The structure is fixed on reinforced concrete foundations. Foundation works are always required.
WHY USE IT
Covered parking spaces protect vehicles from the environment, thereby saving you money.
Generate green energy by installing solar panels. Incorporate an energy storage unit to store energy for the night usage, or feed back into the grid.
Using solar panels as the carport roof, instead of fixing them to existing structures, is a great way to provide easy access for installation and routine maintenance, and doesn't damage pre-existing buildings.

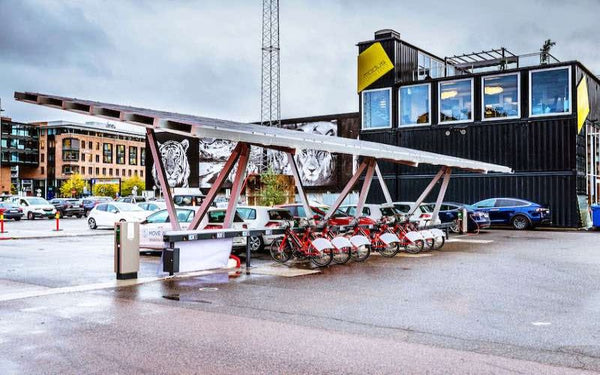

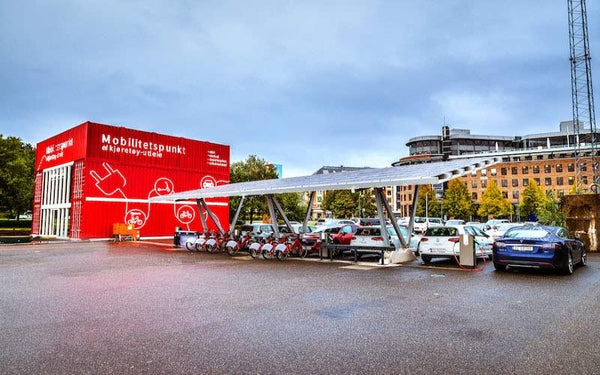

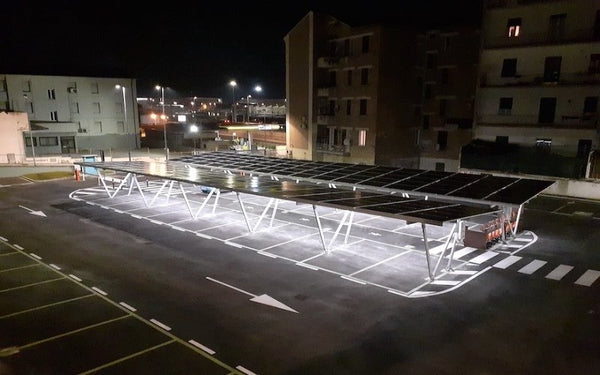

Turn your carport into an EV Charging station for use with cars, bicycles and scooters.
Show the world your 'Green' credentials. Integrate your carport with EV Charging units branded with your company logo and colours.
Use a customised colour to integrate your Pensilsole so it sits in harmony with neighbouring structures.
High-quality design. Individual components are CE certified
WHO WILL USE IT
Turn your retail or corporate car park into an asset! Protect vehicles from the environment while generating solar energy. Use that energy during the day for EV charging and at night for security lighting, or exchange it on the grid and save on energy bills.
Municipalities and councils can join the E-Mobility revolution and lead by example. Encourage the public and local businesses to invest in electric vehicles by providing easy access to charging stations. Save money for local constituents by generating their own solar energy for consumption.
Make your residential strata building EV ready and compliant. Installing solar panels on a pre-existing rooftop can risk damage to the roofing membrane. A canopy installation allows the system to be easily installed, provides easy access for solar panels to be cleaned and controlled, ensuring maximum performance over time.

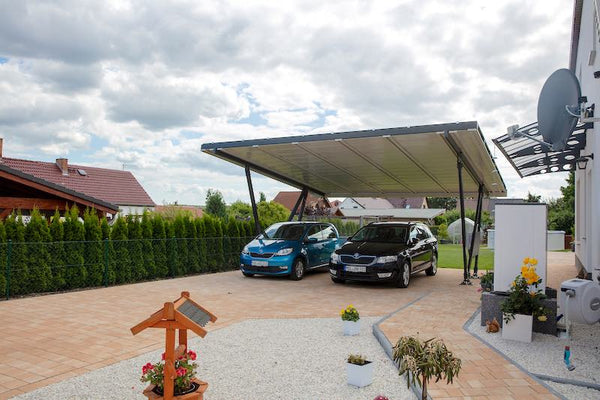

Private residences who want to save on their electricity bills or have a designated safe outdoor area for charging E-bikes, e-scooters and other light electric vehicles (LEV). LEVs should be stored and charged outside in a garage or carport, away from living spaces and combustable materials to prevent fires.
TECHNICAL
The structure is made out of aluminium profiles and powder coated steel components cataphoresis treated. No ordinary maintenance is needed.
Compatible with any photovoltaic panel, so you can choose your preferred solar supplier with confidence.
Quick installation time. The rapid assembly reduces the installation cost and avoids any interruption to regular activities while work is carried out. This is particularly useful for council, retail and corporate car parks where the scale of projects is large.
Adaptable to new needs that arise over time, like adding more modules, or switching to higher performance panels as the technology is perfected.
The structures are modular and on request can be fitted with an efficient guttering system.
The structures are customisable in size and colour. Rigid branded advertising panels with logo and graphics can be installed.
Limited maintenance.
Standard Pensilsole can be supplied with optional concrete ballasts. The advantages are: 1) No expensive foundations are required meaning little or no spoil. 2) All carports on ballasts are meant as temporary structures, however to find out if your project will need planning permission contact your local authority. 3) If needed the structure can be easily relocated to another place. Upon request a steel plates version is available to be bolted down onto existing or purpose built foundations.
Choose from standard colours: 1) Anodized Silver 2) White (Matt finish) 2) Dove Grey (Matt finish) 4) Dark Brown (Matt finish)
Or customise your colour by choosing from the RAL range with a smooth finish.

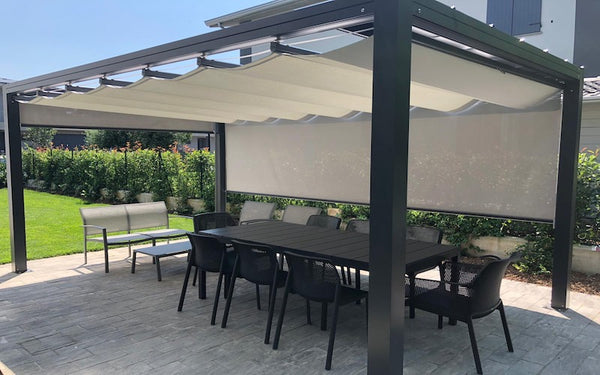

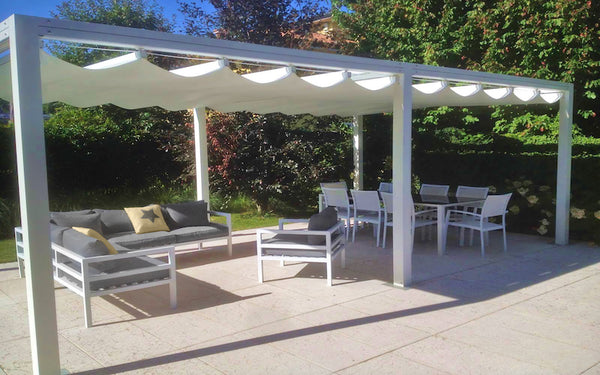

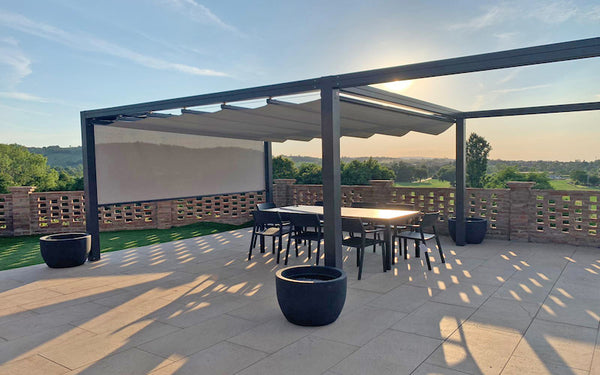

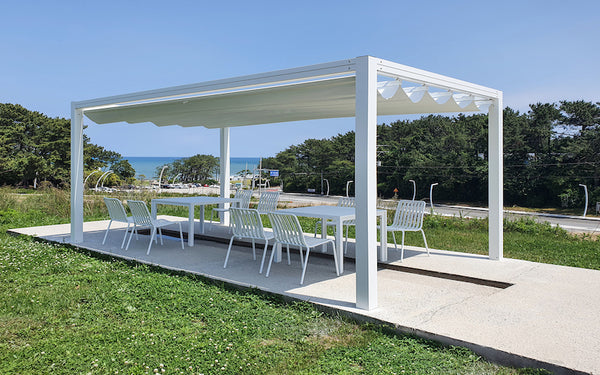

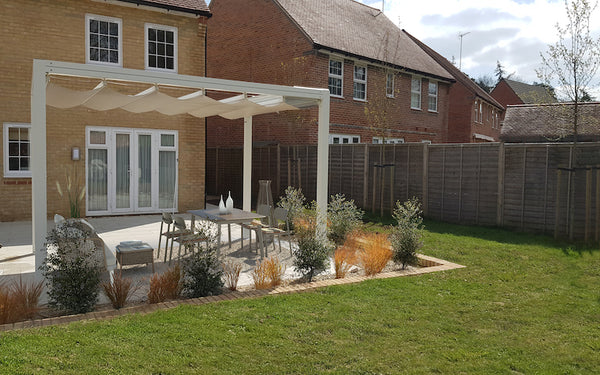

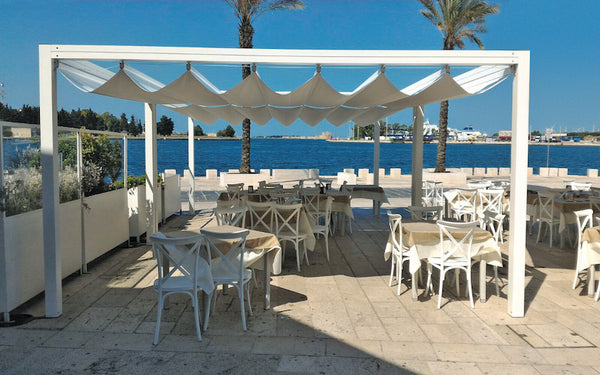

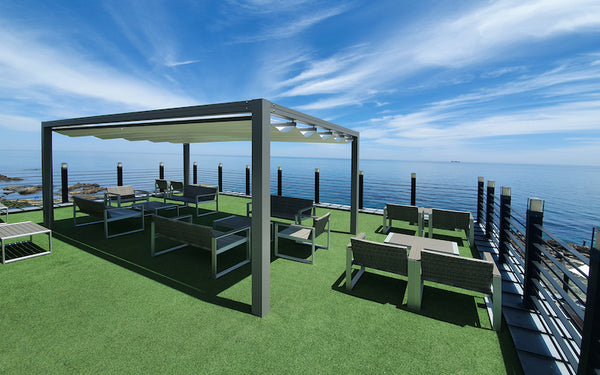

Discover Onda, the retractable roof pergola, perfect for creating a unique atmosphere in your outdoor space, allowing you to adjust the shade and light according to your preferences.
Whether you prefer a freestanding or lean-to structure, Onda adapts to your needs. Its design is characterized by simplicity, both aesthetically and mechanically: the opening system is manual to ensure product longevity, and it has been designed to provide extremely easy and effortless operation. This contemporary pergola blends harmoniously with the surrounding landscape and architecture, offering a cozy space dedicated to comfort and relaxation.
Attention to detail is reflected in the choice of volumes, materials, and color schemes, creating new, minimal, and innovative forms. Regardless of the architectural style of your space, the Onda pergola seamlessly integrates, leaving its timeless imprint. Its timeless elegance promotes a perceived simplicity that harmoniously combines with sophisticated and cutting-edge design.
Features
Bioclimatic pergola manufactured with aluminium profiles and galvanised polyester powder coated steel components.
Retractable awning with PVC inserts
FEET standard / hidden / for sandy ground
Individual components are CE certified
Retractable sun shade 100% made in Italy
The structure of the retractable awning can be extended sideways by installing additional modules.
FAQ
What is Onda, and what are its key features?
The Onda retractable roof pergola is a versatile outdoor structure designed to create a unique atmosphere in your outdoor space. It allows you to adjust shade and light according to your preferences. Onda adapts to your needs, whether you prefer a freestanding or lean-to structure. Its design is characterized by simplicity, both aesthetically and mechanically, ensuring longevity and effortless operation. This contemporary pergola harmoniously blends with surrounding landscapes and architectures, providing a cozy space dedicated to comfort and relaxation.
What is the supporting structure of the retractable awning made of?
The retractable awning's supporting structure is made of aluminum and is manufactured with aluminum profiles and galvanized polyester powder coated steel components, ensuring durability and stability.
The distinguishing feature of Eclettica is its sober, simple, and essential lines. It has a forward-looking design that encourages interactions between communities and nature while producing renewable energy.
What are the color options available for the Onda pergola's frame?
The Onda pergola's frame comes in standard colors such as white (matte), dove grey (matte), and dark brown (matte). Additionally, other colors from the RAL range with a smooth finish are available upon request.
What type of fabric is used for the roof cover of the Onda pergola?
The fabric used for the roof cover of the Onda pergola is primarily Precontraint PVC by Ferrari, a leading manufacturer of structural fabric used in tensile structures. Various types of PVC fabric are available, including Ferrari Soltis 96 Mesh, Ferrari Soltis 96 waterproof lining, Ferrari Precontraint 402, and Ferrari Precontraint 602 blackout matte, each offering unique color options.
Can the retractable pergola be branded with advertising?
Yes, branding is possible on the windowless side walls of the retractable pergola. However, please note that branding cannot be applied to Soltis 96 fabric.
What additional options are available for the Onda pergola?
Additional options for the Onda pergola include:
Ground Anchoring: Available for both Onda 120 and Onda 90 models. Straps - PVC Wall: Secure your pergola with PVC wall straps. PVC Walls with Central Opening: Opt for walls with a central opening for added versatility. Sheer Curtains: Enhance privacy and aesthetics with sheer curtains. VOK - Roller Blind: Control sunlight and visibility with the VOK roller blind option. Flooring System: Choose the Easy Floor system for a complete outdoor experience. For any specific inquiries or custom requests, please feel free to contact our customer support. We're here to assist you in creating the perfect outdoor space tailored to your needs and style.
Can additional modules be added to the retractable awning for customization?
Yes, the structure of the retractable awning is modular, allowing you to extend it sideways by installing additional modules. This feature enables customization according to your specific outdoor space requirements.

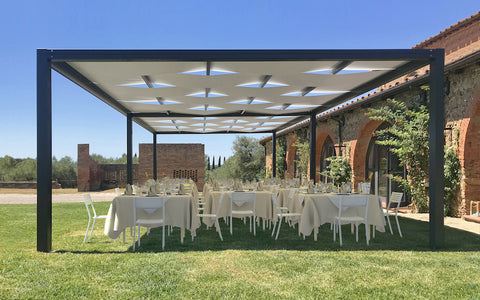

Kube is the marvelous fusion of contemporary design and the archetype of a woven vegetal canopy, creating the most natural shading system. The structure of the Kube shading pergola resembles a pergola crossed with woven PVC membrane canopies. The alternating movements of these canopies break the monotony of surfaces, allowing glimpses of the sky. Kube stands out for its variety of shapes and sizes, with different heights and modular volumes. This characteristic offers opportunities for urban and residential redevelopment, connecting parts of the built environment or botanical context to the pergola, which becomes the unifying spatial element. Kube creates meaningful relationships with any context, opening up panoramic views of space and generating a multitude of ways to perceive harmonious beauty.
Features
Aluminium profiles and cataphoresis and polyester powder coated steel components.
Shading canopy with interlaced PVC fabric roof
The structure of the shade canopy can be extended sideways by installing additional modules.
Perimeter walls with drop-down curtains ZIP technology or sliding glass panels to match the structure
FEET standard / hidden / for sandy ground
FAQ
What is Kube and what are its key features?
Kube is a revolutionary shading pergola that combines contemporary design with the traditional concept of woven vegetal canopies. It features a unique structure that combines elements of a pergola and woven PVC membrane canopies, offering a natural and aesthetic shading system.
What makes Kube stand out?
Kube stands out due to its diverse shapes, sizes, and modular volumes. This flexibility allows it to seamlessly integrate into urban and residential environments, connecting different parts of the built environment or botanical surroundings. It creates meaningful relationships with its surroundings, offering panoramic views and enhancing the perception of harmonious beauty.
What materials are Kube made of?
Kube's supporting structure is made of aluminum profiles with cataphoresis and polyester powder coated steel components. The roof cover is constructed using interlaced PVC fabric.
Can additional modules be added to Kube?Yes, the structure of the shade canopy can be extended sideways by installing additional modules, providing further customization options.
Can Kube be branded with advertising?
Yes, the windowless side walls of Kube can be branded with advertising. Please note that branding cannot be applied on Soltis 96 fabric.
What colors are available for Kube's frame?
Kube's frame is available in standard colors such as white (matt), dove grey (matt), and dark brown (matt). Custom colors from the RAL range with a smooth finish are also available upon request.
What types of PVC fabrics are used for the roof cover?
.Kube's roof cover is made using Precontraint PVC fabrics by Ferrari, a renowned manufacturer of structural fabrics for tensile structures. Various options like Ferrari Soltis 96 Mesh, Ferrari Soltis 96 waterproof lining, Ferrari Precontraint 402, and Ferrari Precontraint 602 blackout matt are available.
Is Kube suitable for both residential and commercial use?
Kube can be used in both residential and commercial settings, making it versatile for various applications, such as creating comfortable outdoor spaces in homes or enhancing the ambiance of commercial establishments.
Is Kube designed to withstand outdoor weather condition?
Kube is designed to withstand outdoor weather conditions, but the durability may vary depending on factors like the climate and the specific accessories chosen. It's advisable to discuss your requirements with the manufacturer to ensure the product suits your environment.
What are the dimensions of the standard module for Kube?
The maximum dimensions of the self-supporting standard module are 500 x 600 cm, with a maximum total height of 252 cm. Kube is available in square or rectangular shapes
What type of fabric is used for the roofing sheet?
Eclettica uses mainly Precontraint PVC fabric by Ferrari, a renowned manufacturer of structural fabric used in tensile structures.
Can I have flooring?
Yes we can provide integrated Horizon flooring for every size.
What additional options and accessories are available for Kube?
Kube offers various options and accessories, including ground anchoring, PVC wall straps, walls with central openings, sheer curtains, VOK roller blinds, and an Easy Floor system for added convenience and customisation.

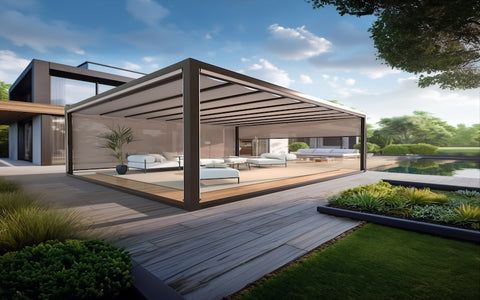

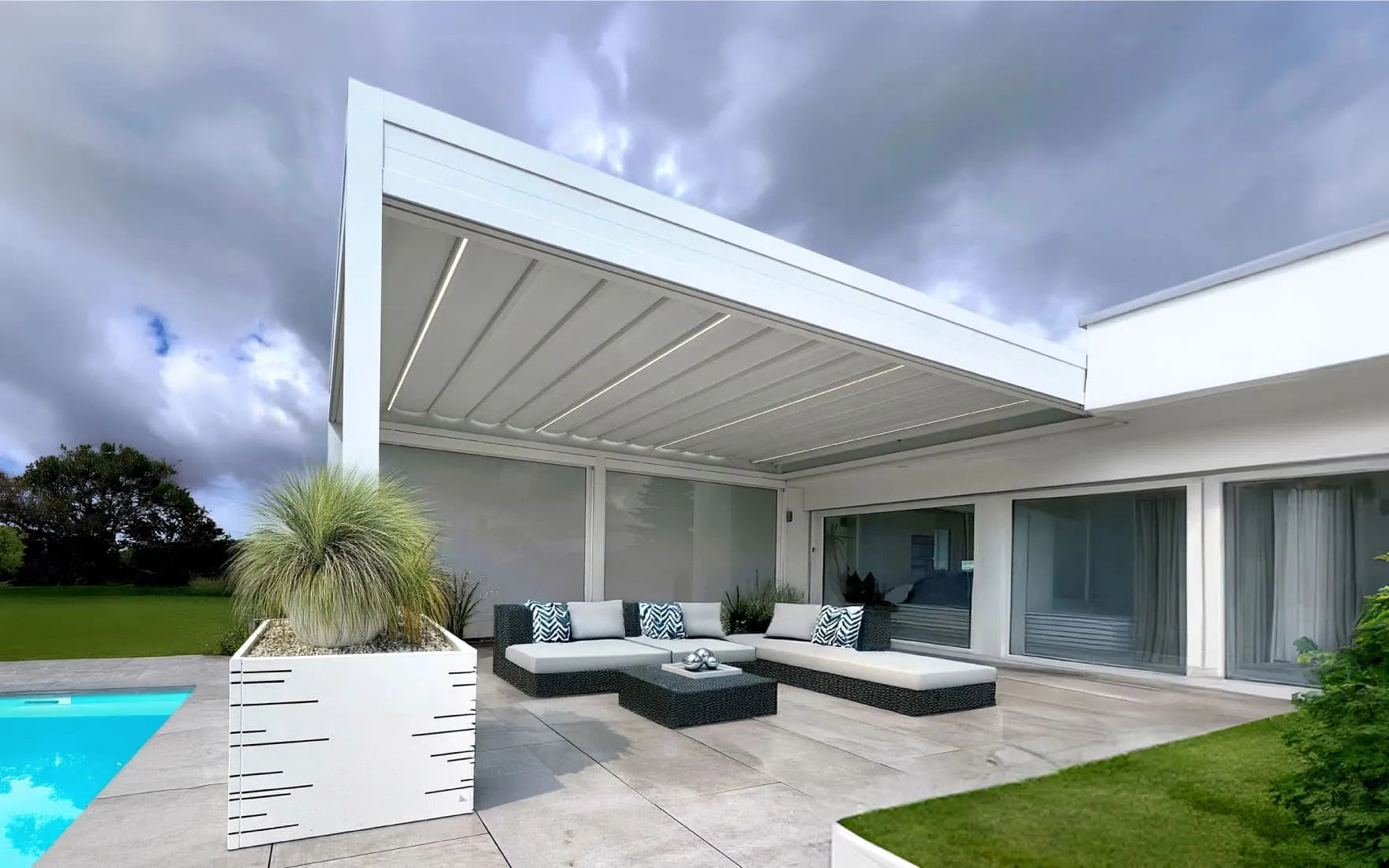

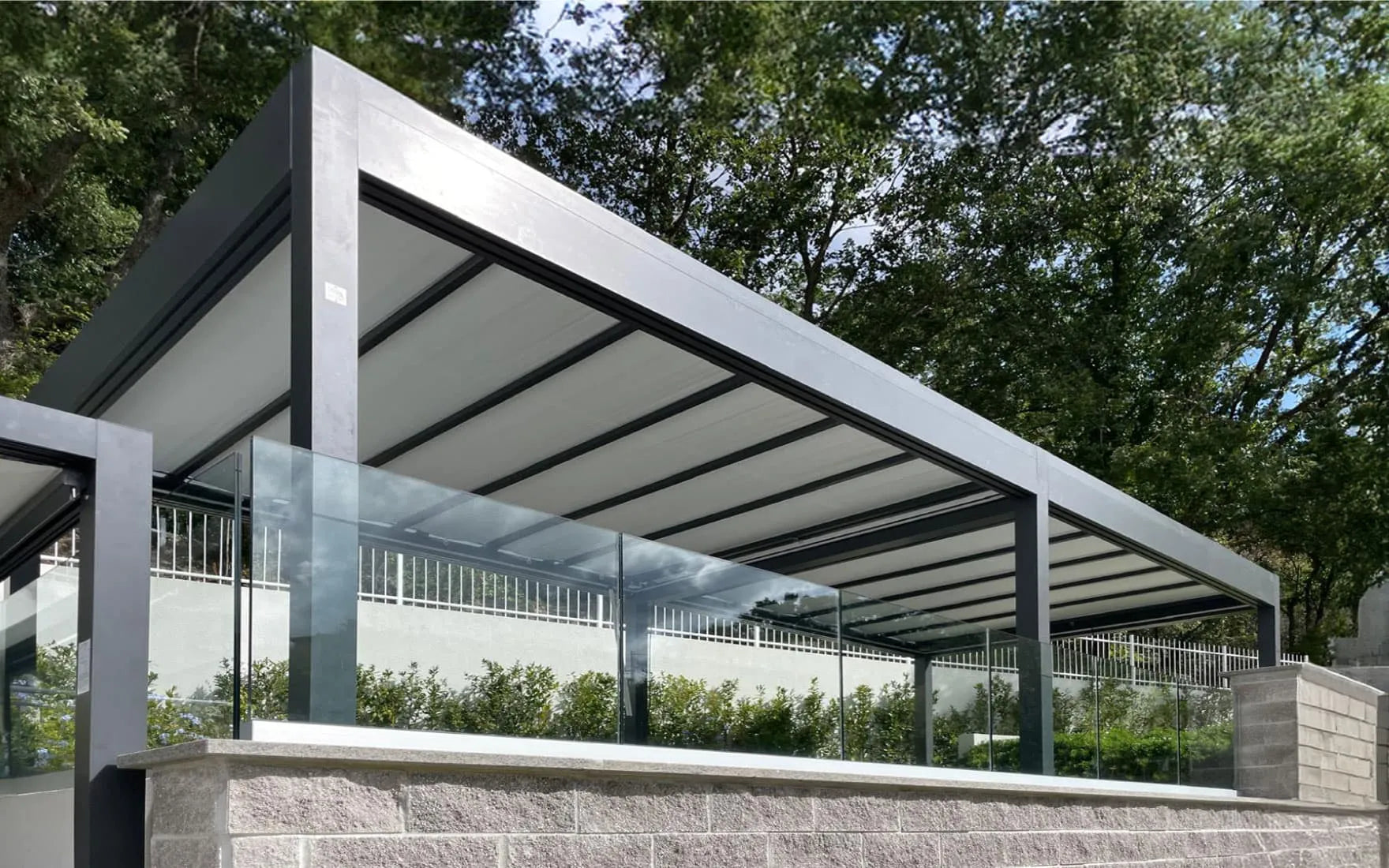

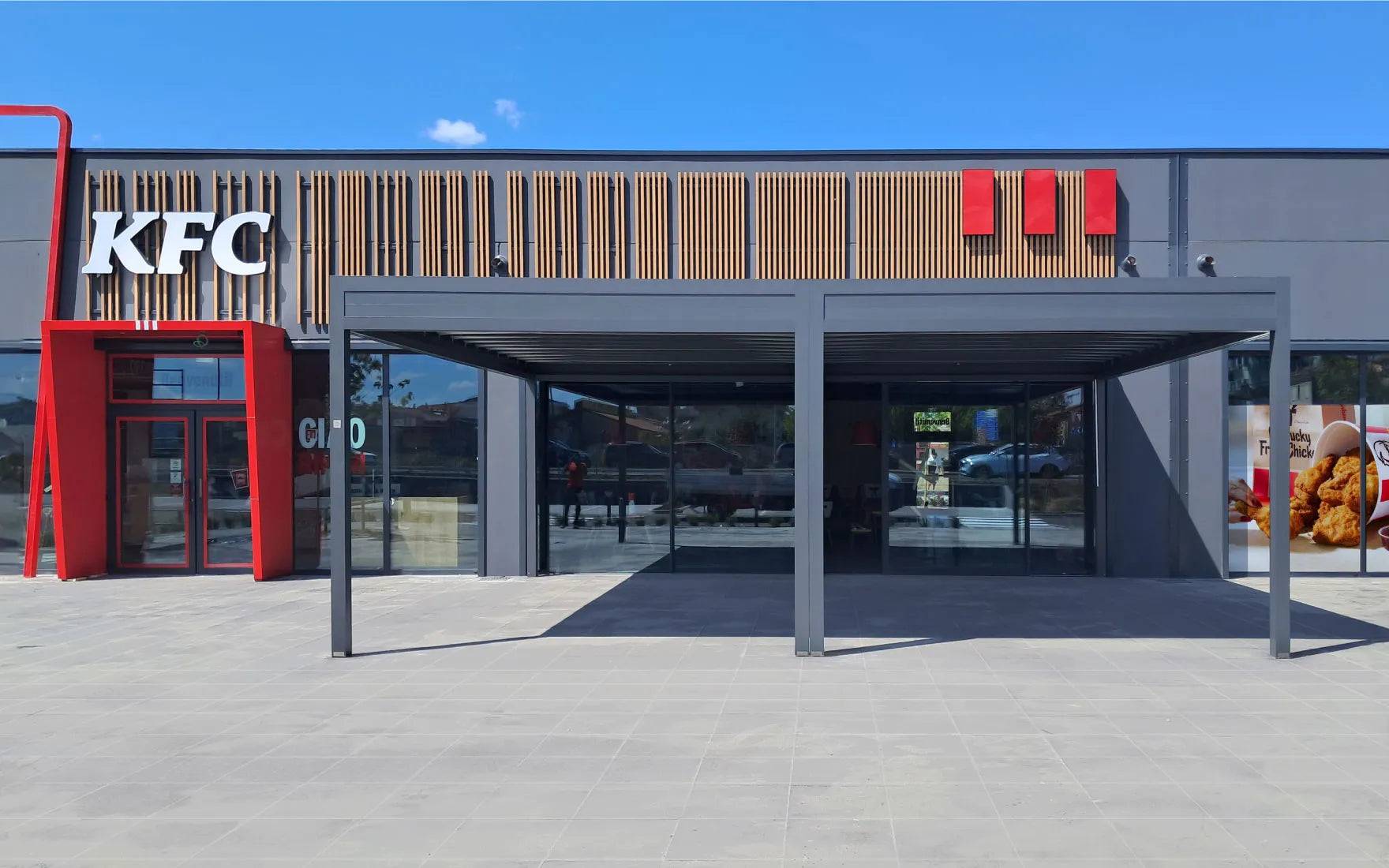

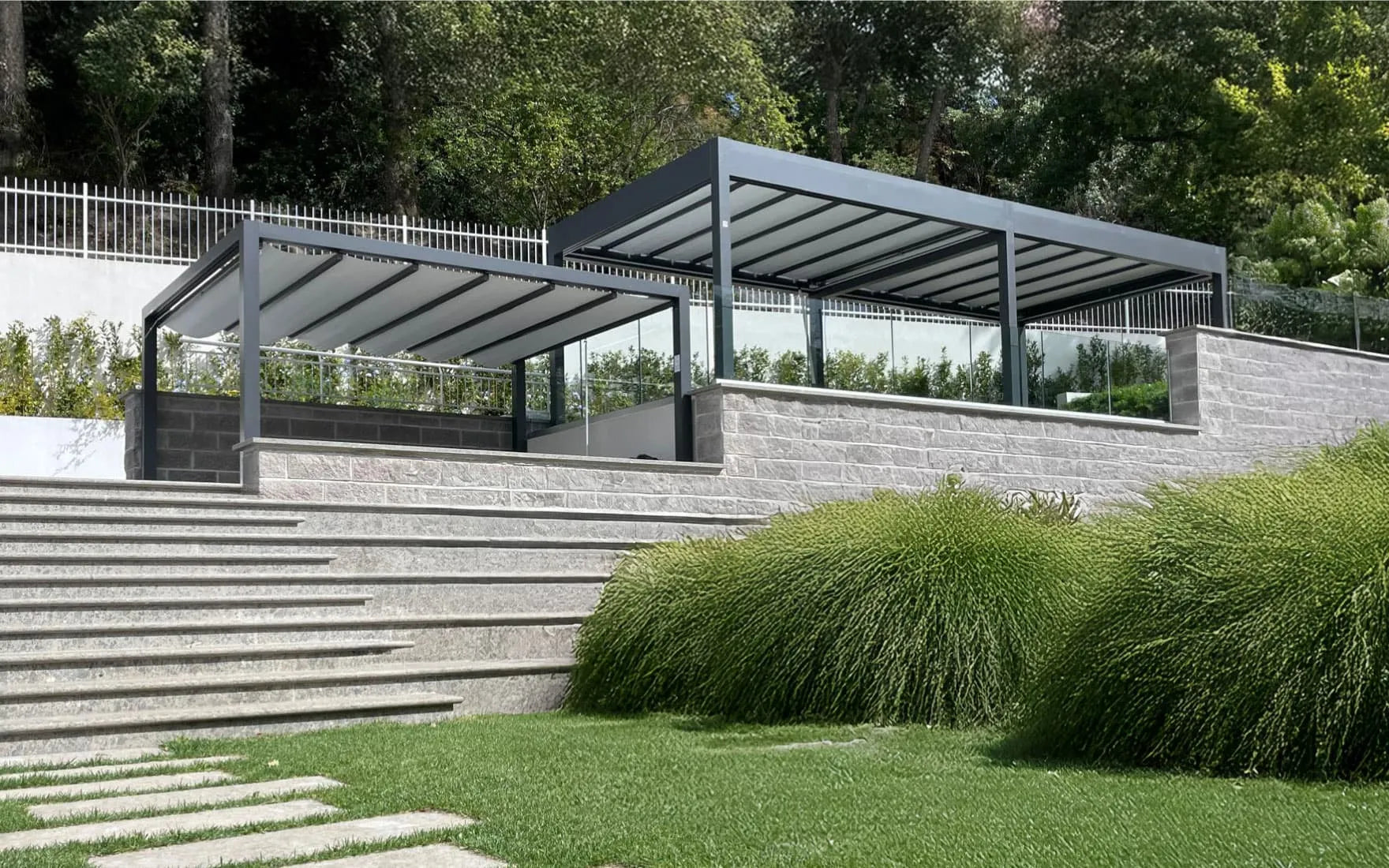

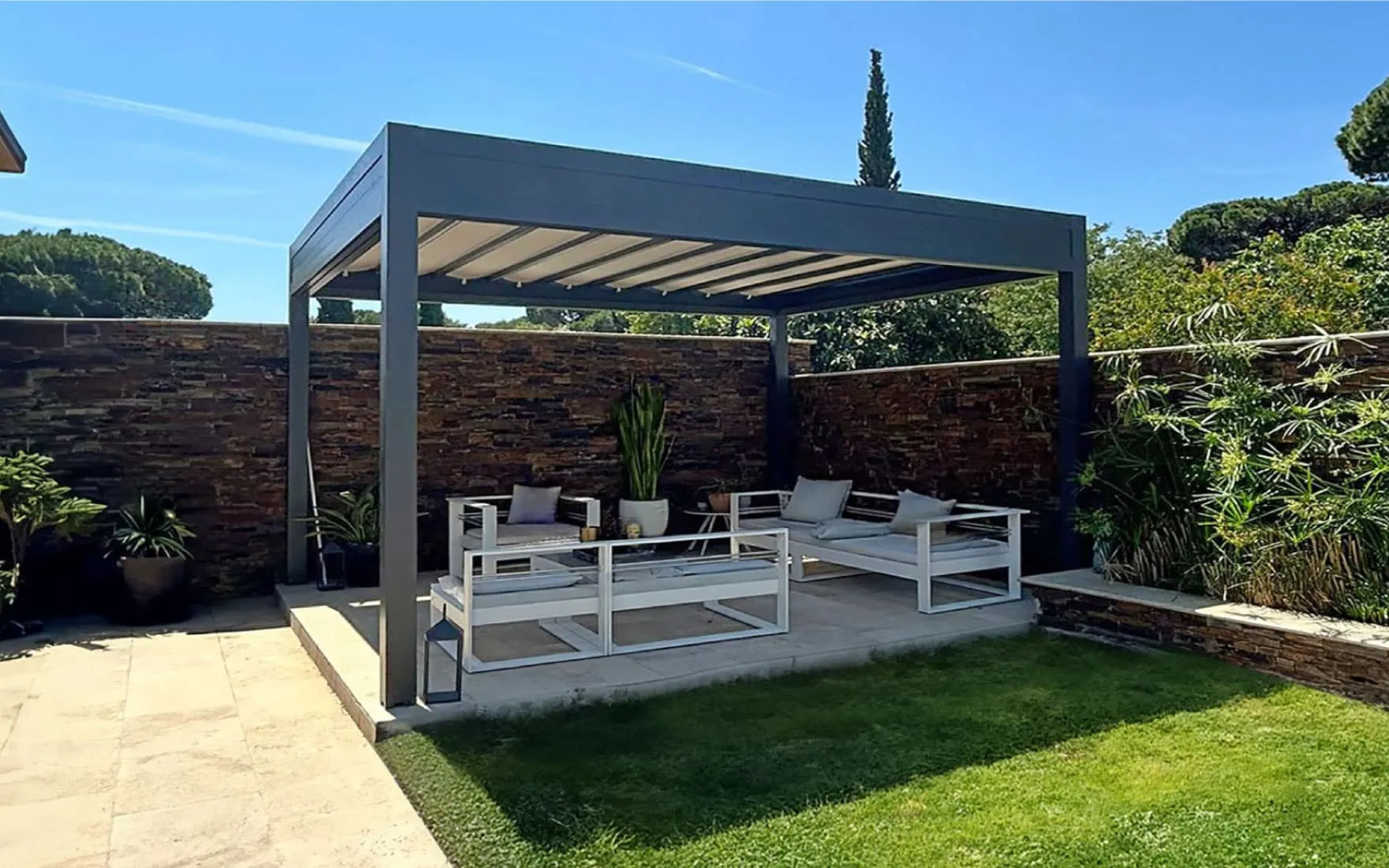

Introducing Arcadia—an innovative retractable roof pergola meticulously crafted to elevate outdoor spaces into distinctive and inviting environments. This cutting-edge solution empowers you to embrace the sun's warmth or seek shelter in the shade, effortlessly adapting to external weather conditions and personal preferences.
The design seamlessly blends aesthetics with functionality. Its sleek profile ensures durability, while the manual opening system guarantees ease of use, making your outdoor experience both elegant and effortless.
Here are five compelling reasons to choose Arcadia:
1. Effortless Protection: Arcadia's sliding cover allows you to effortlessly open and close the upper fabric with a simple gesture, giving you the freedom to effectively manage your outdoor space at any time of the day.
2. Sleek Minimalist Design: Arcadia's essential and linear shapes, coupled with its minimalist design, make it stand out. This modern structure embodies a perfect balance of innovation and elegance, seamlessly harmonising with any outdoor landscape.
3. Low Maintenance and Durability: Arcadia is designed for minimal periodic maintenance. Cleaning the aluminium profiles and cover is all that's needed. We prioritise lightweight, durable, and corrosion-resistant materials like aluminium and PVC, ensuring longevity while preserving their qualities.
4. Strength and Practicality: Arcadia excels in mechanical design, featuring a manual sliding cover with special trolleys for smooth and silent movement—eliminating the need for a motorised system. The integrated magnetic locking system is highly resistant to wear and breakage, ensuring long-term reliability and functionality.
5. Ease of Installation: The meticulous design and simplicity of components ensure incredibly fast installation times. Every element of the Arcadia pergola is crafted to minimize the time and effort required for assembly, making it a hassle-free addition to your outdoor space.
FAQ
What is Arcadia and what are its key features?
A pergola with manually operated sliding cover , The Arcadia -K offers an integrated gutter system that seamlessly and allows for the addition of various types of walls from our VOK walls as well as zippered and elegant glass panels.
What makes Arcadia stand out?
Arcadia stands out with its seamless sliding cover for easy outdoor space management, offering instant shade or sunlight with a simple gesture. The pergola's minimal design embodies modern innovation and elegance, harmonizing effortlessly with any landscape
Can additional modules be added to Arcadia?
Yes, the structure of the shade canopy can be extended sideways by installing additional modules, providing further customization options.
Can Arcadia be branded with advertising?
Yes, The windowless side walls can be branded with advertising (NB: branding cannot be put on Soltis 96 fabric). Additional advertising banners can be fixed to the Aluminium structure.
What colors are available for Arcadia's frame?
Arcadia's frame is available in standard colors such as white (matt), dove grey (matt), and dark brown (matt). Custom colors from the RAL range with a smooth finish are also available upon request.
What types of PVC fabrics are used for the roof cover?
.Kube's roof cover is made using Precontraint PVC fabrics by Ferrari, a renowned manufacturer of structural fabrics for tensile structures. Soltis Mesh , Soltis 96 , Precontraint 402 and the Precontraint 602 Blackout are available.
Is Arcadi suitable for both residential and commercial use?
Arcadia can be used in both residential and commercial settings, making it versatile for various applications, such as creating comfortable outdoor spaces in homes or enhancing the ambiance of commercial establishments.
Is Arcadia designed to withstand outdoor weather condition?
Arcadia is designed to withstand outdoor weather conditions, but the durability may vary depending on factors like the climate and the specific accessories chosen. It's advisable to discuss your requirements with the manufacturer to ensure the product suits your environment.
What are the dimensions of the standard module for Arcadia?
The maximum dimensions of the self-supporting standard module are 500 x 600 cm, with a maximum total height of 302 cm on the standard version with 332cm max height on the Arcadia K. Arcadia is available in square or rectangular shape.
Can I have flooring?
Yes we can provide integrated Horizon flooring for every size.
What additional options and accessories are available for Arcadia?
Arcadia offers various options and accessories, including LED lighting, ground anchoring, PVC wall straps, walls with central openings, sheer curtains, VOK roller blinds, and an Easy Floor system for added convenience and customisation.
Why settle for second best! With over 10 years experience, we are the best in the business! Party and event planners, party hire companies, large brand names such as Nike, Jagermeister, Jim Beam, Vodafone and many more, have come to us to help them create a big-time stir with their outdoor events, in the knowledge that we offer the following:
QUALITY- Our innovative workmanship ensures that marquees are designed to offer longevity and strength. Our flagship stretch tent fabric was engineered specifically for our marquees and is the only fabric on the market which guarantees 4 way stretch, 100% waterproofing, built-in fire retardants, UV stabilizers and anti-bacterial treatment.
BRANDING TECHNOLOGY- Using our latest printing technology, custom branding printed on our marquees will withstand all elements and remain as good as new for years to come.
CUSTOM DESIGNS- Need something that is truly unique and eye-catching? We have an array of standard sizes, shapes and colours however we can exclusively design a Stretch Tent that meets your specific event needs. With their extensive years of experience, our design team understands the need each customer has to stand out! They can create almost anything out of our exclusive fabrics to suit your event and promotional needs. They have assisted many well-known brands such as Nike, Vodafone, Jagermeister, and Jim Beam, making certain their brands are noticed at events!
MODULAR- No matter where one of our stretch tents and marquees are set up, you can bet they always draw a crowd. Add lights, lycra stretch event architecture and inflatable structures to any of our stretch tents, inflatable tents, or inflatable marquees, and you've got a combination that will instantly take your event to the next level.
Nelson’s Wharfis a mooring facility for narrowboats situated next to the Grand Union Canal in Warwickshire. They were looking for an event tent to be used to host events for their customers and to be offered to glamping guests for family gatherings, consequently they purchased an 8m x 10m sandstretch event tent.
Nelson’s Wharf has a wonderful story of restoration. <READ MORE>
As the world moves towards sustainable energy sources, solar power has emerged as a key solution for reducing carbon emissions and mitigating climate change.Pensilsole Solar panel carportsare one such innovation that can help councils and shopping centres achieve their sustainability goals while also offering practical benefits. <READ MORE>
