Our retractable tunnel concept is incredibly versatile and lends itself to a range of applications. Each order can be designed and manufactured according to clients needs. Large, small, fixed or retractable - whatever your situation, our Design & Installation team can find a solution to your search.
Folding garages, football tunnels, weatherproof walkways or temporary warehouses - no problem. Whichever industry, the right application is available: sports, retail or leisure
Designed and manufactured in Europe, our retractable tunnel solutions provide a perfect versatile solution
Chassis: High-yield silver-anodized aluminum alloy (EN AW6060 T6).
Hardware: Stainless steel joints and specialized pantograph (scissor) systems for fluid mechanical retraction.
Compaction Ratio: 5m modules retract to approx. 35cm (varies by model); allows for 90%+ clear site recovery when closed.
Wind Loading: Certified for stability up to 100 km/h (with anti-lift tracks and lateral tensioning).
Snow Load: Rated at 0.10 $kN/m^{2}$ (EN13782 compliant); compatible with internal heating systems for snow mitigation.
Membrane & Enclosure
Fabric: Ferrari Precontraint 502 PES-PVC; high-tenacity polyester with double-sided coating.
Compliance: M2/B1 Flame Retardant; UV-stabilized and anti-fungal treated.
Maintenance: Modular 1m roof panels with Keder strip inserts for rapid, localized replacement without full disassembly.
Visibility: Optional integrated high-transparency PVC windows and vision strips for natural internal lighting.
Mobility & Site Adaptation
Foundation-Free: Engineered for installation on existing hardstands without traditional footings or permanent permits.
Wheel Systems: * Nylon/Pneumatic: For standard mobility.
Lift-Proof Tracks: Precision steel floor guides for high-wind safety.
Multi-Directional: 360° swivel wheels for lateral shifting and complex maneuvers.
Modular Linking: Standardized "Flashing" kits for hermetic sealing to buildings, containers, or secondary tunnels.
Dimensional Matrix
Clear Span Widths: 1.0m up to 15.0m.
Eave Heights: 1.8m up to 5.0m.
Configurations: Curved Arch, Single-Pitch (Wall-mounted), or Double-Pitch Asymmetrical.
Deployment & Operational Efficiency
Rapid Setup: Pre-assembled modular components; "Crate-to-Operational" in hours, not weeks.
Logistics: Designed for standard containerization (Model 1 Extra/XL) to minimize international freight costs.
Manual/Motorized: Options for ergonomic pull-handles or automated drive systems for high-frequency operation.
FAQ
Ordering & Customization
Are "off-the-shelf" products available? No. To ensure structural integrity and a precise fit for your site, every tunnel is custom-engineered and manufactured to order.
What are the frame specifications? The framework is constructed from high-grade silver-anodized aluminum. The integrated pantograph tensioning levers are finished in RAL 9006 (White Aluminum) for a professional, uniform appearance.
What fabric options and colors are available? We utilize premium Poly RS ADR 650 GSM fabric.
Standard Palette: White, Grey, Champagne, Black, and Green.
Specialty Textiles: High-transparency "Clear Crystal" PVC, Blackout PVC (for light-sensitive operations), and integrated window or clear-roof sections for natural illumination.
Structural Capabilities & Dimensions
What are the maximum available dimensions? * Span (Width): Up to 15m (50').
Clearance (Eave Height): Up to 5m (16'6").
Length: Scalable to your requirements; there is no maximum limit to the length of the run.
What is the retraction ratio? Our systems are engineered for high-density storage. For example, a 10m (33') tunnel compacts to approximately 67cm (2'3") when fully retracted.
Can the system accommodate uneven or curved sites? Yes. The modular design allows for vertical sloping to follow terrain gradients and can be engineered to navigate horizontal bends up to 90 degrees.
Safety, Engineering & Compliance
Are the structures fire-rated? Yes. All membranes are certified to international fire safety standards, including:
Australia: AS 1530
USA: NFPA 701
Europe: UNI EN 13782:2015
What is the wind-load rating? When deployed with a compliant anchoring system and the application of integrated tensioning straps, our tunnels are rated for wind resistance up to 100km/h (62 MPH).
How is the structure secured or anchored? Standard configurations utilize heavy-duty wall-fix brackets. For freestanding models, we provide specialized anchoring kits tailored to your specific ground surface.
Mobility & Hardware
What wheel and track options are available? We offer several hardware configurations based on the environment:
Nylon Wheels: 125mm (4.9") for standard hardstands.
Pneumatic / Rubber Wheels: 140mm–200mm (5.5"–8") for increased clearance and variable terrain.
Anti-Lift Tracks: Optional precision floor guides to ensure stability in high-wind regions.
Ground fix brackets
Concrete or water weights with tensioning straps
Is the tunnel difficult to deliver?
No. It's easily freighted in custom solid timber boxes
Two-Person Rule: Manual opening and closing must be managed by two people, especially for larger structures, to ensure fluid and synchronized movement.
Pinch Point Awareness: Keep hands and clothing clear of the scissor pantograph system (crossbars) during extension or retraction to avoid entrapment.
Clearance: Ensure the path of the wheels is free from debris or obstacles before moving the tunnel to prevent sudden stops or tipping.
2. Environmental & Wind Safety
Wind Resistance: The tunnel's safety is certified only when using appropriate anti-lift guides or lateral tie rods.
Standard Config: Maximum wind speed is significantly reduced without stability kits.
Reinforced Config: With lateral tie rods, stability is ensured up to 100 km/h for most models (e.g., Ready Box 1 Extra, XL, 2, 4, and 6).
Snow Load: In the event of heavy snowfall, the structure must be monitored. If it is an unheated structure, snow accumulation should be cleared, or the PVC cover removed before storms to prevent structural failure.
3. Installation & Maintenance
Anchoring: Always ensure the structure is securely anchored using the provided safety straps, steel cables, or ballasts (concrete or fillable plastic).
Fire Safety: Only use original fireproof PVC sheets. Verify that the flame-retardant certification is valid and that no flammable materials are stored directly against the fabric.
Regular Inspection: Periodically check the pantograph locking mechanisms and wheel integrity to maintain structural stability.
Negative Pressure Inflatable Medical or Industrial Tent
$16,300.00 AUD
Our easy to install inflatable Negative Pressure tent is designed to create a negative pressure environment inside the tent and reduce the risk of contamination.
What it is used for
- Triage medical tent for respiratory virus or contagious assessment
- Isolation or Intensive Care Unit (ICU)
- Medical tent
- Industrial safety tent
Features
Features of our Negative Pressure inflatable tent are
- Prevents the spread of contaminated air
- Provides more than 2.5 Pascal negative pressure when entry door is closed and sealed.
- 12 ACH (Air changes per hour) is possible with proper negative pressure unit.
- Rapid and easy deployment
- There are Pass boxes on the side of tent wall for access pipes or electrical ducting
Giulio Barbieri QZEBO - Modern Architectural Gazebo
The Evolution of Design: Minimalist. Elegant. Functional.
The QZEBO is a revolutionary modern gazebo that replaces the traditional pitched roof with a sleek, linear rise. This Italian-made structure combines minimalist aesthetics with high-grade engineering, making it a prestigious feature for any outdoor environment. Whether for a luxury private garden or a high-end commercial venue, QZEBO elevates the space without the need for destructive construction.
5 Reasons to Choose QZEBO
Italian Design & Manufacture: Entirely designed and industrialised in Italy since 1990.
Fast Assembly: Quick installation without the need for specialised tools or qualified personnel.
Low Maintenance: High-quality aluminium and PVC materials require only basic cleaning.
Modular Flexibility: Easily link multiple "cubes" to create large-scale, cost-effective venues.
Certified Quality: CE certified with fire-retardant fabrics and 5-year structural warranty.
Finish Options
Standard Structure Colours (Aluminium)
Available in smooth or matt-rough finishes. Custom RAL colours available on request.
White (Matt-rough)
Special Grey (Smooth)
Dove-Grey (Matt-rough)
Dark-Brown (Matt-rough)
Standard Fabric Roof Colours
White
Champagne
Grey
Dove-Grey
Dimensions
Standard Dimensions
Size (cm)
Area
Max Height
300 x 300
9 m²
Up to 350cm
400 x 400
16 m²
Up to 362cm
500 x 500
25 m²
Up to 374cm
300 x 400 / 500
12-15 m²
Up to 364cm
Frequently Asked Questions
Frequently Asked Questions
Is the QZEBO waterproof and how is runoff managed? Yes, the high-quality PVC cover (Ferrari Precontraint 502/602) is fully waterproof. For water management, single units can use an external gutter, while joined configurations utilize an internal gutter and downpipe system to efficiently channel runoff.
What wall and flooring options are available? You can customise your QZEBO with a variety of wall types, including:
PVC walls (plain, windowed, mesh, or clear) with strap attachments.
Vertical "Zip" roller blind walls.
Sheer curtains with central openings.
Elegant sliding glass walls. Additionally, you can opt for the Modular Horizon flooring solution to complete the space.
Can I add heating or lighting? Absolutely. QZEBO is compatible with several comfort options, including:
Dimmable perimeter LED strip lighting and LED spotlights.
2.00 kW infrared heaters for year-round use.
What are the available color and material options? * Frame Colors: Standard options include White, Grey, Dove Grey, and Dark Brown, with custom RAL colors available at an extra cost.
Roof Fabric Colors: Standard choices are White, Grey, Dove Grey, and Champagne, with additional colors available for a fee.
Roof Materials: Crafted from high-quality Ferrari 502 (570 gsm) or 602 (650 gsm) PVC to suit your specific needs.
What sizes and setup configurations are offered? QZEBO is highly versatile and can be installed in freestanding or wall-mounted configurations. Standard sizes include:
Square: 3m x 3m, 4m x 4m, and 5m x 5m.
Rectangular: 3m x 4m, 3m x 5m, and 4m x 5m. The modular design allows you to connect multiple units in any configuration using an array of joining components.
What safety certifications and warranties are provided? All QZEBO fabrics are fire-retardant and rated under:
UNI EN 13782:2015.
USA NFPA 701.
Australia AS 1530. The structure is CE certified and complies with UNI EN 1991 and NTC 2018 load requirements for wind and weather. Aluminum structural elements also include a 5-year warranty.
Can units be anchored without drilling? Yes. For locations where floor anchoring is not possible, concrete ballasts or concrete fioriera (planters) are available to securely stabilize the structure.
Italian craftsmanship meeting the demand for ecological solutions and all-around comfort.
ECLETTICA is a unique, elegant structure designed to minimise acoustic reverberation while remaining 100% waterproof. Unlike traditional structures, its fixed insulated roof uses specialised panels to reduce noise pollution, providing a peaceful environment even during heavy rain.
It can be installed quickly at almost any location; for example, a 5m x 6m unit can be assembled in roughly 4 hours by 2 people with lifting equipment. The modular design enables ECLETTICA cubes to be linked easily to expand your space without destructive works.
Optional Upgrade: Reinforced Structure
Standard models support a 50 kg/m² snow load (10.2 lb/ft²). The Reinforced Upgrade increases capacity to 100 kg/m² (20.5 lb/ft²) by utilising heavy-duty internal purlins—ideal for alpine environments.
Core Features
Soundproofing: 70mm thick sound-absorbing rock wool panels limit reverberation.
Thermal Break: Isothermal sandwich panels eliminate condensation and maintain temperature.
Solar Integration: Roof is designed for photovoltaic panel integration.
Integrated Drainage: Rainwater is managed internally through downpipes hidden in columns.
Premium Lighting: Integrated under-roof Strip LED or RGB indirect light systems.
Technical Specifications
Feature
Standard Detail
Frame Material
100% Architectural Aluminium
Module Dimensions
Up to 16' 5" x 19' 8" (Customisable spans available)
Total Height
Maximum 10' 8"
Snow Load
Standard: 10.2 lb/ft² | Reinforced: 20.5 lb/ft²
Finish Options
Eclettica is finished with high-resistance epoxy powder coating for superior durability.
Standard Structure Colours (Aluminium)
White (Matte-rough)
Special Grey (Smooth)
Dove Grey (Matte-rough)
Dark Brown (Matte-rough)
Standard Fabric Roof Colours
White
Champagne
Grey
Dove Grey
Frequently Asked Questions
Can Eclettica be linked to cover large areas? Yes. The modular design allows you to link units using common uprights, creating a seamless, architectural roofline for large terraces or commercial venues.
Does it include integrated lighting? Yes, the structure features an integrated under-roof lighting system using Strip LED or RGB indirect light to set the perfect evening ambience.
Is the roof condensation-free? Yes. The sandwich roof panels feature a "Thermal Break" design that eliminates the problem of condensation, maintaining a dry environment below.
How long does installation take? The structure is designed for efficiency. For instance, a 5m x 6m module can be assembled in roughly 4 hours by 2 people using appropriate lifting equipment.
Pensilsole Solar Carport is an aluminium photovoltaic carport. Manufactured in Europe, the Pensisole is an elegant solution for assisting client's to generate solar energy for self-consumption.
Pensilsole Standard - Middle or Maxi
Pensilsole Standard can be quickly installed, and can also accommodate advertising panels to the profiles to maximise visibility of your brand.
Ground fastening systems:
Installation without foundation works with reinforced concrete ballast bases. We suggest using ballasts on asphalt, concrete and on driveways in self-locking bricks. This solution is faster to install.
Installation with special steel plates on reinforced concrete foundations. We suggest using anchor plates for bigger works and on non-stabilised soils. Foundation works are required when using anchor plates.
Pensilsole Cantilever
Pensilsole Cantilever gives cars maximum freedom to manoeuvre by reducing the frame works attached to the ground.
Ground fastening systems:
The structure is fixed on reinforced concrete foundations. Foundation works are always required.
WHY USE IT
Covered parking spaces protect vehicles from the environment, thereby saving you money.
Generate green energy by installing solar panels. Incorporate an energy storage unit to store energy for the night usage, or feed back into the grid.
Using solar panels as the carport roof, instead of fixing them to existing structures, is a great way to provide easy access for installation and routine maintenance, and doesn't damage pre-existing buildings.
Turn your carport into an EV Charging station for use with cars, bicycles and scooters.
Show the world your 'Green' credentials. Integrate your carport with EV Charging units branded with your company logo and colours.
Use a customised colour to integrate your Pensilsole so it sits in harmony with neighbouring structures.
High-quality design. Individual components are CE certified
WHO WILL USE IT
Turn your retail or corporate car park into an asset! Protect vehicles from the environment while generating solar energy. Use that energy during the day for EV charging and at night for security lighting, or exchange it on the grid and save on energy bills.
Municipalities and councils can join the E-Mobility revolution and lead by example. Encourage the public and local businesses to invest in electric vehicles by providing easy access to charging stations. Save money for local constituents by generating their own solar energy for consumption.
Make your residential strata building EV ready and compliant. Installing solar panels on a pre-existing rooftop can risk damage to the roofing membrane. A canopy installation allows the system to be easily installed, provides easy access for solar panels to be cleaned and controlled, ensuring maximum performance over time.
Private residences who want to save on their electricity bills or have a designated safe outdoor area for charging E-bikes, e-scooters and other light electric vehicles (LEV). LEVs should be stored and charged outside in a garage or carport, away from living spaces and combustable materials to prevent fires.
TECHNICAL
The structure is made out of aluminium profiles and powder coated steel components cataphoresis treated. No ordinary maintenance is needed.
Compatible with any photovoltaic panel, so you can choose your preferred solar supplier with confidence.
Quick installation time. The rapid assembly reduces the installation cost and avoids any interruption to regular activities while work is carried out. This is particularly useful for council, retail and corporate car parks where the scale of projects is large.
Adaptable to new needs that arise over time, like adding more modules, or switching to higher performance panels as the technology is perfected.
The structures are modular and on request can be fitted with an efficient guttering system.
The structures are customisable in size and colour. Rigid branded advertising panels with logo and graphics can be installed.
Limited maintenance.
Standard Pensilsole can be supplied with optional concrete ballasts. The advantages are: 1) No expensive foundations are required meaning little or no spoil. 2) All carports on ballasts are meant as temporary structures, however to find out if your project will need planning permission contact your local authority. 3) If needed the structure can be easily relocated to another place. Upon request a steel plates version is available to be bolted down onto existing or purpose built foundations.
Choose from standard colours: 1) Anodized Silver 2) White (Matt finish) 2) Dove Grey (Matt finish) 4) Dark Brown (Matt finish)
Or customise your colour by choosing from the RAL range with a smooth finish.
Inflatable Sanitisation and Decontamination Tunnel / Tent
$10,750.00 AUD
Inflatable Decontamination and Sanitization Tunnel Overview The Inflatable Decontamination and Sanitization Tunnel offers an efficient, fast, and reliable solution for comprehensive sanitation in various emergency and medical settings. Ideal for use by fire departments, medical facilities, and hospitals, this system ensures thorough disinfection of all surfaces through an atomized liquid spray, even reaching areas not directly exposed to the nozzles.
Key Features Complete System: The tunnel comes fully equipped with an atomizing sanitization unit, including pre-installed plumbing hoses and nozzles for immediate use.
Ease of Use: Simply inflate the tunnel, and it’s ready for operation. Designed for quick setup and efficient decontamination.
Durable Construction:
High-Quality Materials: Rigid, high-quality inflatable fabrics maintain inflation for weeks without needing reinflation. Weather Resistant: Capable of withstanding heavy rain and strong winds, making it suitable for various environmental conditions. Robust Design: Built to be durable and resistant to wear and tear. Rapid Deployment:
Fast Setup: Can be erected by just 2 to 4 people in under 5 minutes. Compact Storage: After deflation, the tunnel can be packed into a compact bag for easy transport and storage. Versatile Connectivity:
Additional Components: Easily connectable to other decontamination equipment such as water tanks, pressure control tanks, water heaters, and contaminated water storage solutions. High Air Pressure Capacity: Durable frame supports high air pressure up to 0.35 Bar, with a built-in relief valve to prevent overpressure. Applications Fire Departments: Post-Incident Decontamination: Effective for decontaminating fire equipment, gear, and personnel after responding to incidents involving hazardous materials. Ensures thorough cleaning of surfaces exposed to smoke, chemicals, and contaminants. Medical and Hospital Wash-Down: Infection Control: Ideal for sanitizing medical equipment, vehicles, and personnel in medical facilities and hospitals. Provides comprehensive disinfection to prevent the spread of infections and ensure a sterile environment. Emergency Response: Useful in emergency situations where rapid decontamination is required to protect patients and medical staff from exposure to hazardous substances. Benefits Efficient Sanitization: Atomized spray provides thorough coverage, disinfecting all surfaces, including those not directly exposed to nozzles. User-Friendly: Simple to set up and operate, making it suitable for a range of applications. Long-Term Reliability: Designed for extended use and robust performance, ensuring a reliable solution for decontamination needs.
Technical Features
Frame material
- Heavy-duty inflatable fabric, 1000 Denier Polyester coated by PVC on both sides
- Durable up to holding 0.35bar air pressure and more - Weight : 1,100 g/m2
Sanitary and decontamination inflatable tunnels and Gates represent a quick to install safe protection and entry for everyone, in particular for those who work in close contact with groups and are therefore at higher risk.
It can be installed at the entrance of events, public offices, pharmacies, supermarkets, airports, hospitals, ports, stations. It is suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.
Uniform mix amount: 10-2500L/hHomogeneous concentration: 0.1-3%Water pressure:0.3-6 bar Maximum water temperature:50°C Weight:1.8 kg
Sewage pump
196x196x 316mm
Origin:Germany Diameter:25mm
Power:0.48kw Number of revolutions:3000r/min
cable length:5M Weight:12kg
Heating pressing all-in-one Water machine
940×600× 740mm
Use electricity and diesel togetherVoltage: 220V/110V Origin:Germany water flow rate: 500 L/hPressure:120 bar
Maximum water temperature:140°CPower: 3.2Kw Weight:84 kg
Cold Pressurised pump
water 400×395× 925mm
Origin: Germany Water Flow rate: 450 L/hPressure: 20~110 bar Maximum water temperature: 60°C
Power: 2.5 Kw Weight: 16kg
Sprayer
Driving pressure: 3~7 bar Water flow rate:
20 L/minWeight: 25 kg Features: Multiple nozzles, easy to carry, lightweight, powerful, equipped with hose feet that are not easy to break, and are rigid under pressure
Heater
860x485 x 530mm
Use electricity and diesel togetherVoltage: 220V/110V Origin: Imported fromItalyHeat output: 28KW24100 Kcal/h Output hot air: 500m3/h Fuel consumption: 2.78L/h Fuel tank volume: 30L Voltage: 230V/50Hz Motor power: 150W
Packing size: 86*48.5*53cm Weight: 31kg Features: High thermal conversion rate, easy to operate, simple installation, safe to use, tempe control, cost saving, easy to move,long service l lead-free surface, environmentally friendly
Alkali scrubber
Is used for the removal of acid-forming components during incineration processes in:
Electricity plants
Waste combustion installations;
Electro industry
Chemicals industry
Chlorine production
250L recycling Sewage bag
Flooring Grate
500mm x 500mm
● Description:
Polypropylene
interlocking tiles ● Width x Length x Thickness mm:
508x 508x 25 ● Colour: Grey
● interlocking With drainage holes.
● Ideal for showers, locker rooms,etc..
Available in grey & green
CBM frame water storage bag
This type of water bag has an air column frame structure, using the air column frame as a support point. It is used for the supply of raw water, and can be used for the supply of snacks and disinfectants. Set water valve for easy use.Specifications: 3000 liters
Sewage recycling (sealed) bag It is used to recycle decontamination liquid and is produced using high-frequency heat sealing technology. It's Available in a variety of colors. Set up functional valves such as water inlet valve, exhaust valve, and drain valve.Specifications are available in 1000 liters, 500 liters, 250 liters, etc.
Self-elevating water storage bag
This type of water bag can be used to store clean water or decontamination solution, and of course can also recycle sewage.
As the liquid is filled, the water bag rises synchronously with the rise of the water level due to buoyancy. Specifications are available in 1000 liters, 500 liters, 250 liters, etc. Product features: This type of water bag adopts an open structure and can be used to recycle sewage and is also suitable for storing clean water or decontamination solution. As the liquid is filled, the water bag rises synchronously with the water level due to buoyancy, making it very convenient to use. Cloth performance: Made of PVC coated cloth Thickness 0.70mm, weight 896.5g/m2 Tear strength: radial 384N, lateral 298.3N Peeling load: 105.8N/5cm in radial direction, 93.1N/5cm in lateral direction Temperature resistance -40°C~70°C Sunlight fastness>5 Flame retardant performance: 1st class
The serious global situation has led us to create a solution that can be of public value: a disinfection tunnel with an integrated, hydraulic system for the atomisation of any biocides and virucides. The tunnel contains the atomised liquid spray inside to effectively saturate the environment.
In this way it is possible to disinfect all surfaces even those which are not directly exposed to the nozzles.
Designed and manufactured in Europe, our Sanitation tunnel solutions provide a perfect versatile solution
Sanitary and decontamination Tunnels and Gates represent a safe protection and entry for everyone, in particular for those who work in close contact with groups and are therefore at higher risk.
It can be installed at the entrance of public offices, pharmacies, supermarkets, airports, hospitals, ports, stations. It is suitable for all private companies who need to sanitise the workforce, goods, vehicles and materials.
How it Works
The tunnel creates an obligatory passage and is equipped with, internal arc-shaped atomising nozzles that saturate the environment but preventing dispersions.
The nebulisation system is connected to a control system capable of automatically mixing the sanitising product at percentages indicated by the manufacturer.
Access to the tunnel is regulated by a traffic light with motion detection. By placing a barrier floor inside the Sanitary Gate, it is possible to sanitise the surface in contact with the ground
Technical Features
Fast assembly in a matter of hours to a few days.
Foundation-free.
Maintenance-free for reduced total lifetime investment.
Space saving: a standard 4 mts tunnel can be retracted up to a minimum of 35 cms when not in use (this is a Rb1 tunnel on nylon wheels)
Suitable for permanent or temporary installation
Easy installation, modification or relocation as the frame is modular and expandable.
User and operator friendly
Coloured roofs and frames, clear windows and covers, curtains (sliding or with central opening) branding and signwriting are available.
Tunnels can be linked together or linked to existing structures or buildings (flashing and plates are available to facilitate a smooth connection)
Completely tailored, made to measure and fully customizable to site's requirements
Innovative and unique design
Long-lasting and cost effective
Widths: from 2.5 mt up to 12 mts
Eave height: from 1.8 mts up to 5 mts
Reduced height tunnels - roof only systems - wall mounted models either single and double pitch, fixed, curved, sloped modules, bespoke sizes smaller or larger are available upon request
Wheel Options: pneumatic tyres, nylon wheels (with and without lift proof tracks) multi-directional pneumatic tyres, multi-directional nylon wheels, heavy duty wheels and much more.
Eyelets, stainless steel tracks, safety straps, handles to pull the tunnel back as an option
covers are made from single panels, each a metre wide, which are fitted into the profile’s groove with a kader strip on both sides

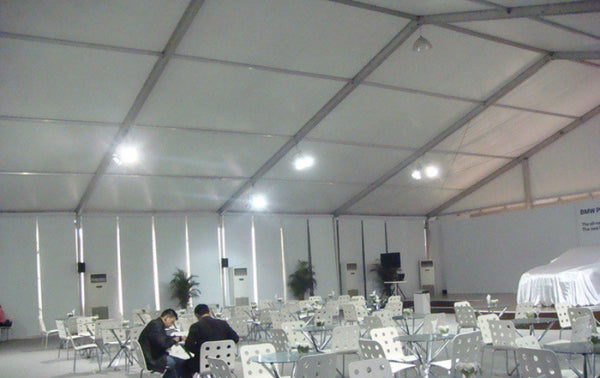

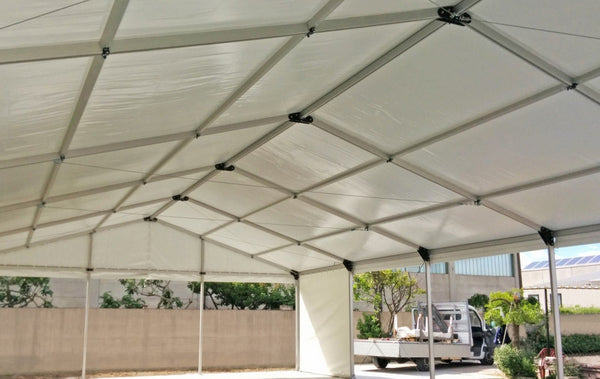

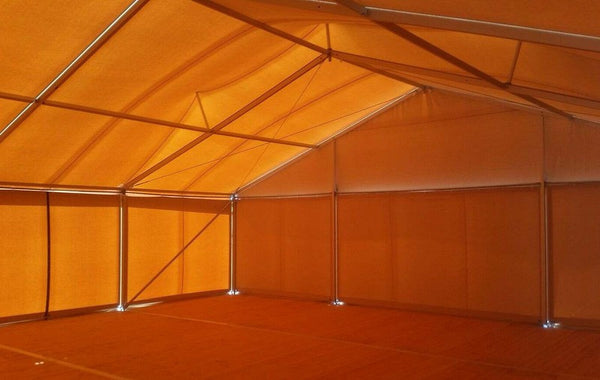

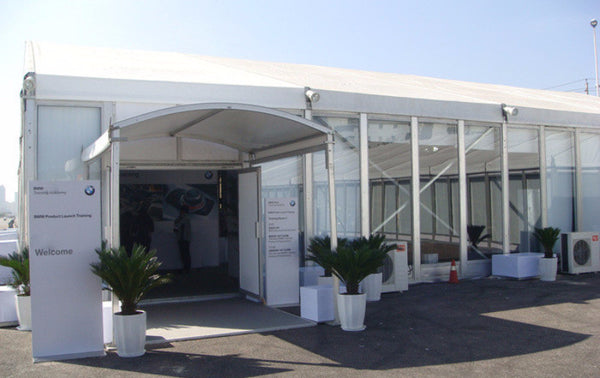

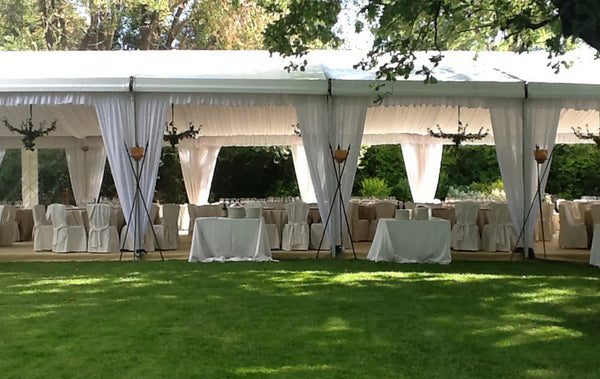

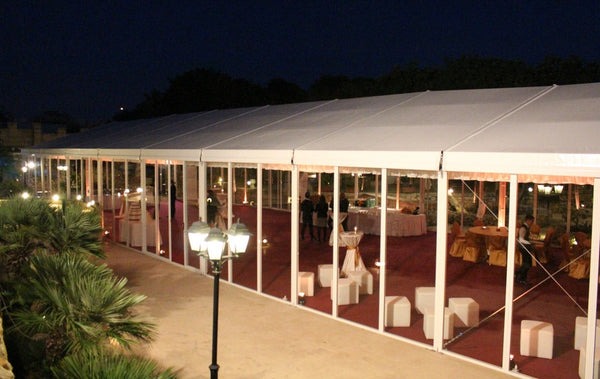

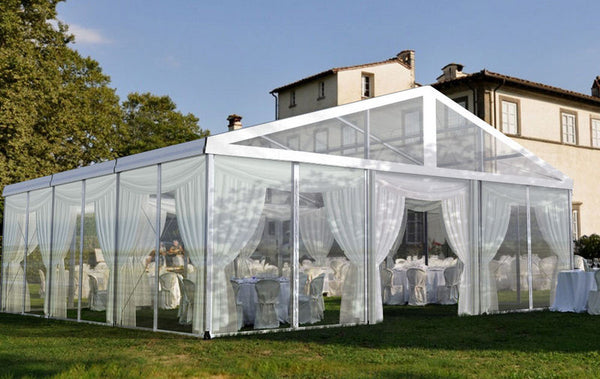

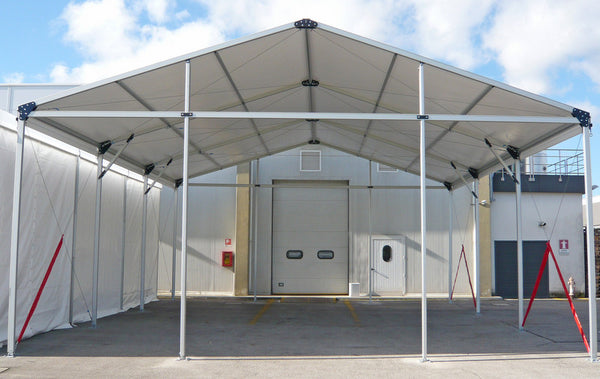

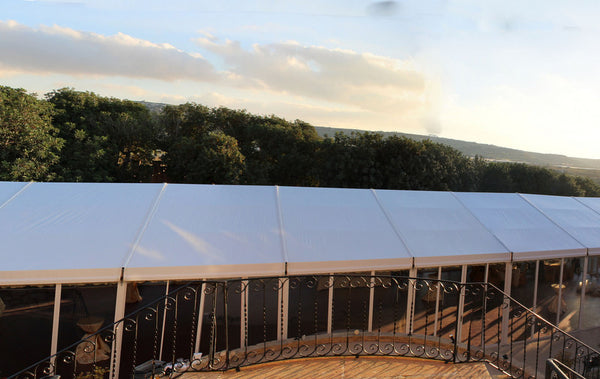

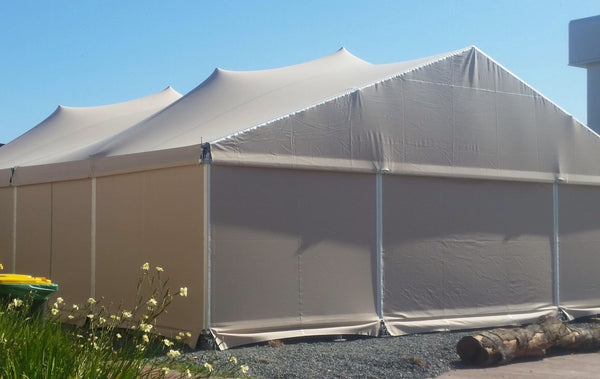

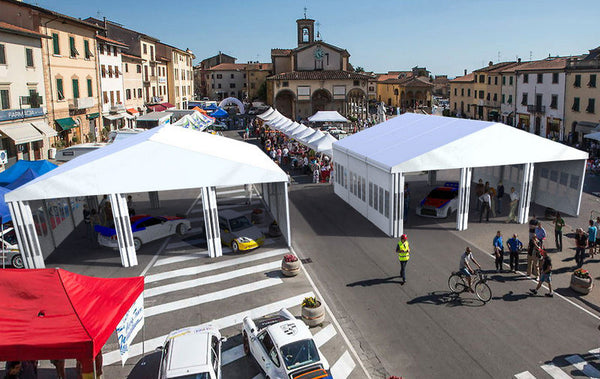

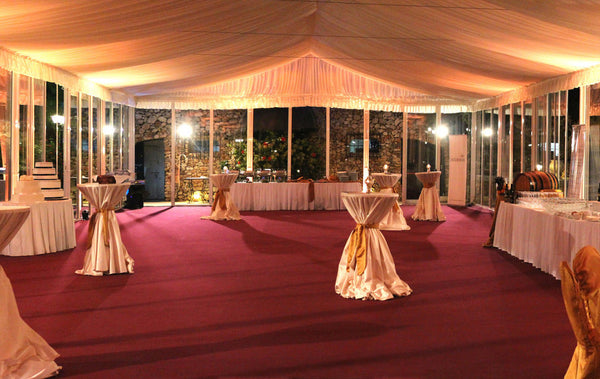

SMFS series of event tents and pavilions offers excellent engineering capabilities and can be configured to suit a variety of spans, lengths and heights.
These marquee structures can be installed quickly, at almost any location and come with some popular options including clear roof PVC, Stretch roofs, linings and flooring.
The range of SMFS pavilions are available in width spans from 6m through to 30m - and in shapes and configurations to suit any event. Including peaked top, arched and custom shapes, with single and two story temporary, portable event structures options available.
The modular construction allows users to create solutions for cost effective and attractive venues

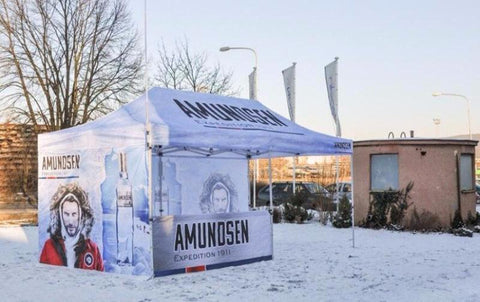

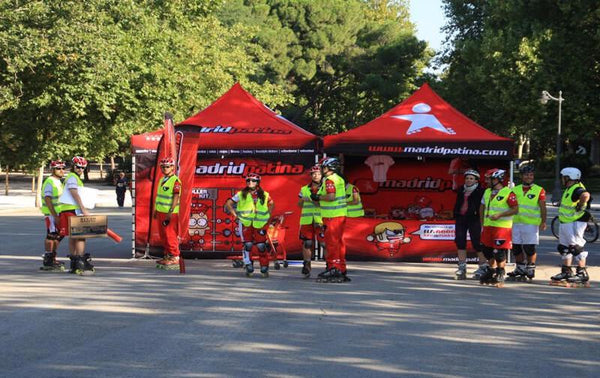

We manufacturepop up tentswith high quality alluminium frame for promotions and events. Made from high quality printable waterproof fabrics 500D. Ready to be fully customized and supported by accessories such as side walls, half walls, visors, or rain gutters to connect two tents together.
Full sublimation print We are offeringfull printon pop up shelters including roof, walls, half walls.DYE sublimation printingchange the look of tent to high quality marketing product. Your pop up tent could be printed without limits to meet customer needs.
Transport vs. Set up time Our pop up tents are provided with an easy to ustrolleybagwhich perfectly fits the size of frame. Trolleybag allows you easy and comfortabletransport and will fit in any vehicle.
The fabrics used for our ezy-up pop up tents perfectly fit to the frame shape. From vehicle to a fully installed tent takesonly a few minutestime and your tent is ready to use.
Quality vs. Price
Supplied with a durable aluminium hexa frame and covered with highquality500D waterproof ripstop PVC coated fabric.
Our walls come with quality hardwearing zippers.
Hard surface solution For those who prefers or using pop up tents on concrete or hard surface we offers a full range of ballast options including sand or water bags or 10kg steel plates.
The revolutionary clearspan stretch pods are what sets Stretch Structures apart from all other stretch tent suppliers. The stretch pods comes in two different sizes and is comprised of a square base with a stunning `optional' spiked or smooth dome top.
Colourful – Why settle for dull white when you can stand out with one of our amazing colors?
Printable –You can have any image, digital artwork or logo applied to your tent to promote your unique brand. Providing an eye-catching promotional marquee that will grab attention.
Flexible – The modular design allows you to use our pods for any purpose - from a small stretch tent booth for a few people - to a large-scale stretch marquee event structure gathering with hundreds.
Whisper Quiet – You won't even realize you are in a tent! Our two-way stretch BEDOUINFLEX™ fabric ensures that the stretch marquees stay quiet, even in the strongest winds.
Customisable – Choose from custom options like clear PVC doorways, wooden flooring, detachable walls and air conditioning.
Use Anywhere – These portable stretch tent structures can be set up on virtually any surface.
Super-fast Setup –The collapsible, lightweight aluminum frame allows these stretch fabric pods to be set up in a fraction of the time, with much less stress and frustration, than the awkward, less attractive marquee alternatives.
Quality – Every stretch tent pod, booth and marquee that leaves our facility has been thoroughly inspected to ensure you get the very best product for your money.
Clearspan structure using our stretch fabric over a innovative frame to make a statement at any event or promotion
Customisable with added options of walls, windows and floors
Fully digital brandable
Modular design to allow for covering larger areas by joining multiple units together
allows the creation of vast undercover villages suitable for all manner of events and requirements.
Easily assembled with a range of options including zip-in side fabric or clear walls
Built using extruded structural aluminium tubing and galvanized steel load bearing joints
In-built rigging points allow for suspended internal lycra skin

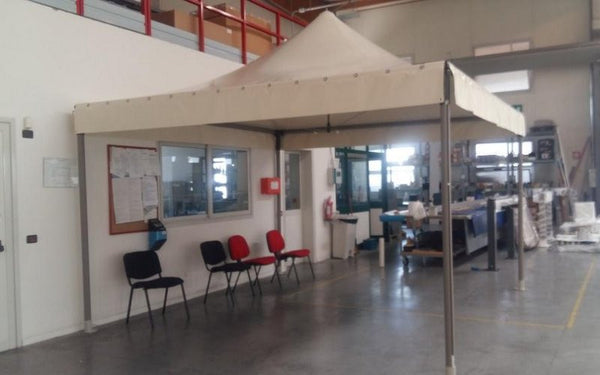

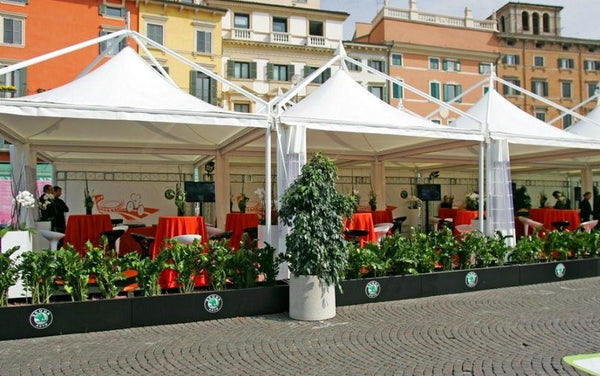

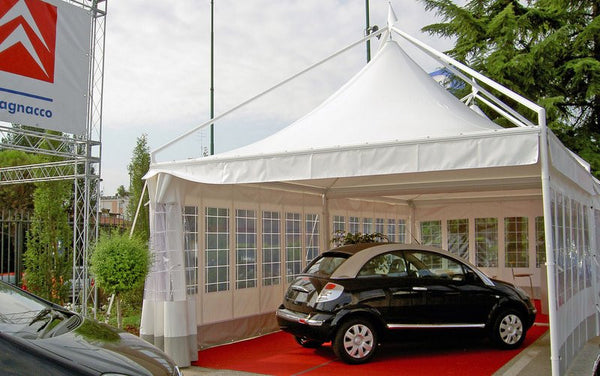

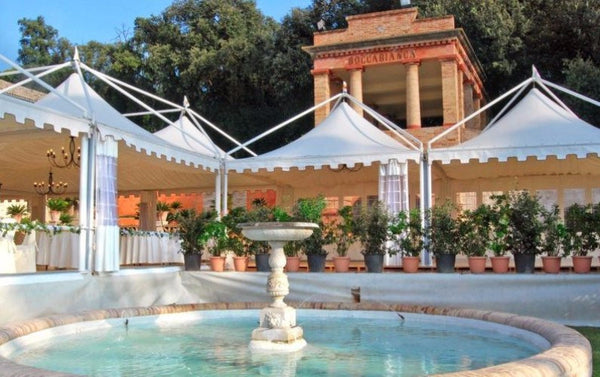

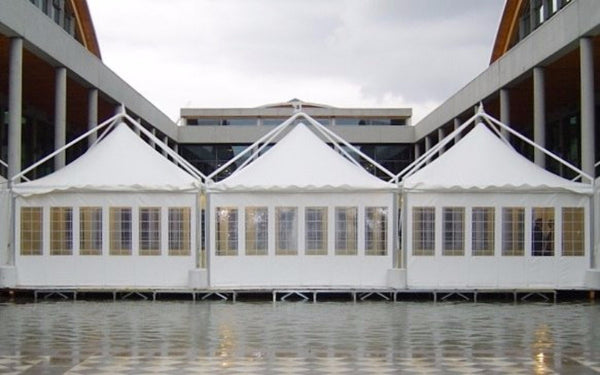

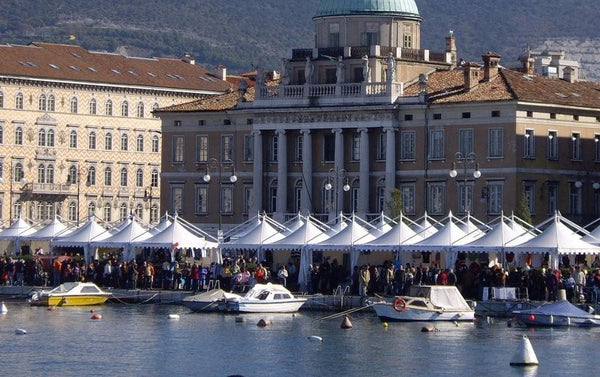

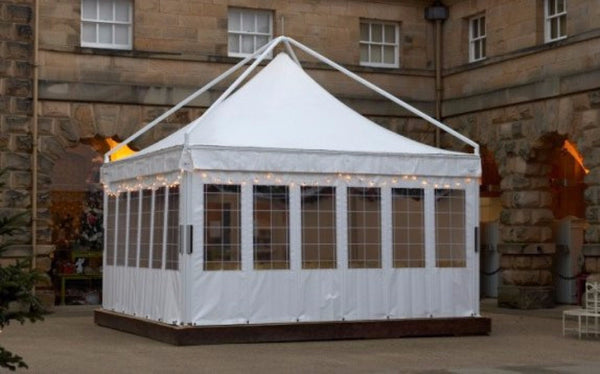

SMFS series of event pagodas offers excellent engineering capabilities and can be customised to suit a variety of spans, lengths and heights, and options for almost any budget
These marquee structures can be installed quickly, at almost any location and come with some popular options including clear roof PVC, Stretch roofs, linings and flooring.
The range of SMFS pagodas are available in width spans from 3m through to 13m - and in shapes and configurations to suit any event. Including square, Octagonal and custom shapes,
The modular construction allows users to create solutions for cost effective and attractive venues
Complete "Mega" stretch tent and truss frame structure including aluminium truss frames, base plates and screws, and stretch tent cover
The MEGA range of multi purpose, extra-strong, truss frame structures are ideal for temporary stages, promotions or shelter.
The entire super strong frame is made using Aluminium Box Truss, covered by strong flame retardant Bedouinflex Stretch fabric. Temporary and permanent fixing options are available, including integrated floor and ballast solutions
A broad range of accessories and options are available. Including but not limited to
Cooling, heating, internal elements, windows, doors, internal lighting and emergency illumination, full printing and ballast options, Frame reinforcement, Internal podiums, bar desk, staging, DJ desk, Flat TV and screen consoles, hangers etc.
Complete "Mega" stretch tent and truss frame structure including aluminium truss frames, base plates and screws, and stretch tent cover
The MEGA range of multi purpose, extra-strong, truss frame structures are ideal for temporary stages, promotions or shelter.
The entire super strong frame is made using Aluminium Box Truss, covered by strong flame retardant Bedouinflex Stretch fabric. Temporary and permanent fixing options are available, including integrated floor and ballast solutions
A broad range of accessories and options are available. Including but not limited to
Cooling, heating, internal elements, windows, doors, internal lighting and emergency illumination, full printing and ballast options, Frame reinforcement, Internal podiums, bar desk, staging, DJ desk, Flat TV and screen consoles, hangers etc.
Italian craftsmanship meeting the demand for ecological solutions and all-around comfort.
ECLETTICA is a unique, elegant structure designed to minimise acoustic reverberation while remaining 100% waterproof. Unlike traditional structures, its fixed insulated roof uses specialised panels to reduce noise pollution, providing a peaceful environment even during heavy rain.
It can be installed quickly at almost any location; for example, a 5m x 6m unit can be assembled in roughly 4 hours by 2 people with lifting equipment. The modular design enables ECLETTICA cubes to be linked easily to expand your space without destructive works.
Optional Upgrade: Reinforced Structure
Standard models support a 50 kg/m² snow load (10.2 lb/ft²). The Reinforced Upgrade increases capacity to 100 kg/m² (20.5 lb/ft²) by utilising heavy-duty internal purlins—ideal for alpine environments.
Core Features
Soundproofing: 70mm thick sound-absorbing rock wool panels limit reverberation.
Thermal Break: Isothermal sandwich panels eliminate condensation and maintain temperature.
Solar Integration: Roof is designed for photovoltaic panel integration.
Integrated Drainage: Rainwater is managed internally through downpipes hidden in columns.
Premium Lighting: Integrated under-roof Strip LED or RGB indirect light systems.
Technical Specifications
Feature
Standard Detail
Frame Material
100% Architectural Aluminium
Module Dimensions
Up to 500cm (16' 5") x 600cm (19' 8") (Customisable spans available)
Total Height
Maximum 326 cm (10' 8")
Snow Load
50 kg/m² (Standard) / 100 kg/m² (Reinforced)
Finish Options
Standard Structure Colours (Aluminium)
All profiles are finished with high-resistance epoxy powder coating for superior weather protection.
White (Matt-rough)
Special Grey (Smooth)
Dove-Grey (Matt-rough)
Dark-Brown (Matt-rough)
Standard Fabric Roof Colours
White
Champagne
Grey
Dove-Grey
Frequently Asked Questions
Can Eclettica be linked to cover large areas? Yes. The modular design allows you to link units using common uprights, creating a seamless, architectural roofline for large terraces or commercial venues.
Does it include integrated lighting? Yes, the structure features an integrated under-roof lighting system using Strip LED or RGB indirect light to set the perfect evening ambience.
Is the roof condensation-free? Yes. The sandwich roof panels feature a "Thermal Break" design that eliminates the problem of condensation, maintaining a dry environment below.
How long does installation take? The structure is designed for efficiency. For instance, a 5m x 6m module can be assembled in roughly 4 hours by 2 people using appropriate lifting equipment.
Kube is the marvelous fusion of contemporary design and the archetype of a woven vegetal canopy, creating the most natural shading system. The structure of the Kube shading pergola resembles a pergola crossed with woven PVC membrane canopies. The alternating movements of these canopies break the monotony of surfaces, allowing glimpses of the sky. Kube stands out for its variety of shapes and sizes, with different heights and modular volumes. This characteristic offers opportunities for urban and residential redevelopment, connecting parts of the built environment or botanical context to the pergola, which becomes the unifying spatial element. Kube creates meaningful relationships with any context, opening up panoramic views of space and generating a multitude of ways to perceive harmonious beauty.
Features
Aluminium profiles and cataphoresis and polyester powder coated steel components.
Shading canopy with interlaced PVC fabric roof
The structure of the shade canopy can be extended sideways by installing additional modules.
Perimeter walls with drop-down curtains ZIP technology or sliding glass panels to match the structure
FEET standard / hidden / for sandy ground
FAQ
What is Kube and what are its key features?
Kube is a revolutionary shading pergola that combines contemporary design with the traditional concept of woven vegetal canopies. It features a unique structure that combines elements of a pergola and woven PVC membrane canopies, offering a natural and aesthetic shading system.
What makes Kube stand out?
Kube stands out due to its diverse shapes, sizes, and modular volumes. This flexibility allows it to seamlessly integrate into urban and residential environments, connecting different parts of the built environment or botanical surroundings. It creates meaningful relationships with its surroundings, offering panoramic views and enhancing the perception of harmonious beauty.
What materials are Kube made of?
Kube's supporting structure is made of aluminum profiles with cataphoresis and polyester powder coated steel components. The roof cover is constructed using interlaced PVC fabric.
Can additional modules be added to Kube?Yes, the structure of the shade canopy can be extended sideways by installing additional modules, providing further customization options.
Can Kube be branded with advertising?
Yes, the windowless side walls of Kube can be branded with advertising. Please note that branding cannot be applied on Soltis 96 fabric.
What colors are available for Kube's frame?
Kube's frame is available in standard colors such as white (matt), dove grey (matt), and dark brown (matt). Custom colors from the RAL range with a smooth finish are also available upon request.
What types of PVC fabrics are used for the roof cover?
.Kube's roof cover is made using Precontraint PVC fabrics by Ferrari, a renowned manufacturer of structural fabrics for tensile structures. Various options like Ferrari Soltis 96 Mesh, Ferrari Soltis 96 waterproof lining, Ferrari Precontraint 402, and Ferrari Precontraint 602 blackout matt are available.
Is Kube suitable for both residential and commercial use?
Kube can be used in both residential and commercial settings, making it versatile for various applications, such as creating comfortable outdoor spaces in homes or enhancing the ambiance of commercial establishments.
Is Kube designed to withstand outdoor weather condition?
Kube is designed to withstand outdoor weather conditions, but the durability may vary depending on factors like the climate and the specific accessories chosen. It's advisable to discuss your requirements with the manufacturer to ensure the product suits your environment.
What are the dimensions of the standard module for Kube?
The maximum dimensions of the self-supporting standard module are 500 x 600 cm, with a maximum total height of 252 cm. Kube is available in square or rectangular shapes
What type of fabric is used for the roofing sheet?
Eclettica uses mainly Precontraint PVC fabric by Ferrari, a renowned manufacturer of structural fabric used in tensile structures.
Can I have flooring?
Yes we can provide integrated Horizon flooring for every size.
What additional options and accessories are available for Kube?
Kube offers various options and accessories, including ground anchoring, PVC wall straps, walls with central openings, sheer curtains, VOK roller blinds, and an Easy Floor system for added convenience and customisation.
Designed with a sleek, minimalist soul, Arcadia disappears into your landscape, allowing the beauty of your architecture and garden to take centre stage. Its linear, modern silhouette creates a frame for your life’s best moments, blending timeless elegance with the effortless ease of modern innovation.
Why Arcadia Belongs in Your World:
Master the Elements: With a single, silent gesture, you decide how much of the world to let in. Retract the roof to bathe in the warmth of the sun, or glide it shut to create a cozy, shaded retreat. You are no longer at the mercy of the weather; you are the architect of your own comfort.
Beauty That Endures: Crafted from high-performance aluminium and resilient PVC, Arcadia is built to withstand the seasons while requiring almost none of your time. It’s designed to stay beautiful, so you can spend your weekends enjoying your space rather than maintaining it.
Sophistication in Motion: Experience the luxury of a manual system so refined it feels weightless. Our bespoke trolley system ensures the roof glides with a whisper, while integrated magnetic locks provide a satisfying, secure finish without the need for complex motors.
Instant Transformation: We believe your sanctuary should be ready when you are. Arcadia’s intuitive design means it can be installed with remarkable speed, turning your patio or terrace into a luxury lounge in a fraction of the time you’d expect.
FAQ
What is Arcadia and what are its key features?
A pergola with manually operated sliding cover , The Arcadia -K offers an integrated gutter system that seamlessly and allows for the addition of various types of walls from our VOK walls as well as zippered and elegant glass panels.
What makes Arcadia stand out?
Arcadia stands out with its seamless sliding cover for easy outdoor space management, offering instant shade or sunlight with a simple gesture. The pergola's minimal design embodies modern innovation and elegance, harmonizing effortlessly with any landscape
Can additional modules be added to Arcadia?
Yes, the structure of the shade canopy can be extended sideways by installing additional modules, providing further customization options.
Can Arcadia be branded with advertising?
Yes, The windowless side walls can be branded with advertising (NB: branding cannot be put on Soltis 96 fabric). Additional advertising banners can be fixed to the Aluminium structure.
What colors are available for Arcadia's frame?
Arcadia's frame is available in standard colors such as white (matt), dove grey (matt), and dark brown (matt). Custom colors from the RAL range with a smooth finish are also available upon request.
What types of PVC fabrics are used for the roof cover?
.Kube's roof cover is made using Precontraint PVC fabrics by Ferrari, a renowned manufacturer of structural fabrics for tensile structures. Soltis Mesh , Soltis 96 , Precontraint 402 and the Precontraint 602 Blackout are available.
Is Arcadi suitable for both residential and commercial use?
Arcadia can be used in both residential and commercial settings, making it versatile for various applications, such as creating comfortable outdoor spaces in homes or enhancing the ambiance of commercial establishments.
Is Arcadia designed to withstand outdoor weather condition?
Arcadia is designed to withstand outdoor weather conditions, but the durability may vary depending on factors like the climate and the specific accessories chosen. It's advisable to discuss your requirements with the manufacturer to ensure the product suits your environment.
What are the dimensions of the standard module for Arcadia?
The maximum dimensions of the self-supporting standard module are 500 x 600 cm, with a maximum total height of 302 cm on the standard version with 332cm max height on the Arcadia K. Arcadia is available in square or rectangular shape.
Can I have flooring?
Yes we can provide integrated Horizon flooring for every size.
What additional options and accessories are available for Arcadia?
Arcadia offers various options and accessories, including LED lighting, ground anchoring, PVC wall straps, walls with central openings, sheer curtains, VOK roller blinds, and an Easy Floor system for added convenience and customisation.
RETRACTABLE TUNNEL BROCHURE
READY BOX 1 TUNNEL
READY BOX 1 EXTRA
READY BOX 2 TUNNEL
READY BOX 4 TUNNEL
READY BOX 6 TUNNEL
